The Log Overview dashboard provides a centralized view of log metrics, trends, and system health. It helps users monitor log ingestion, query performance, and storage utilization in real time.

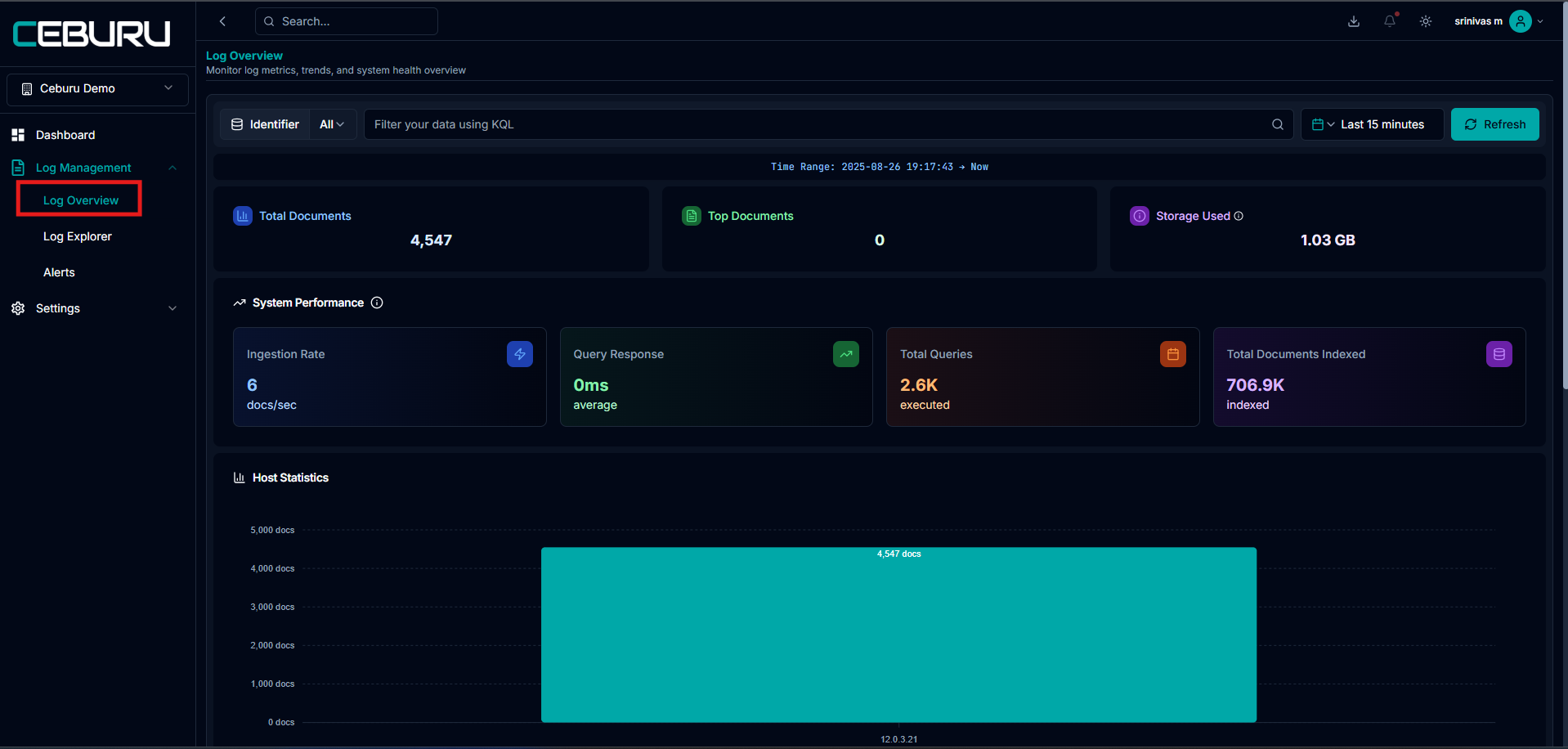

From the left navigation menu, go to Log Management → Log Overview.
The Log Overview Dashboard will open with key system metrics and visual statistics.
Key Metrics in Log Overview:
Time Range & Filtering
Use the time range selector (top-right) to filter logs (e.g., Last 15 minutes, Last 24 hours, Custom range).
Apply KQL filters to narrow results based on identifiers, fields, or conditions.
Total Documents
Displays the number of log documents available in the selected time range.
Top Documents
Highlights the most frequently appearing logs.
Useful for spotting repeated patterns or high-frequency events.
Storage Used
Shows how much storage is consumed by indexed log data.
System Performance
Ingestion Rate: Number of documents ingested per second.
Query Response: Average response time for executed queries.
Total Queries
Displays the total number of log queries executed in the system.
Total Documents Indexed
Represents the cumulative number of log documents indexed into the system.
Host Statistics
A graphical view of logs categorized by hosts.
Helps identify which host is generating the most log volume.

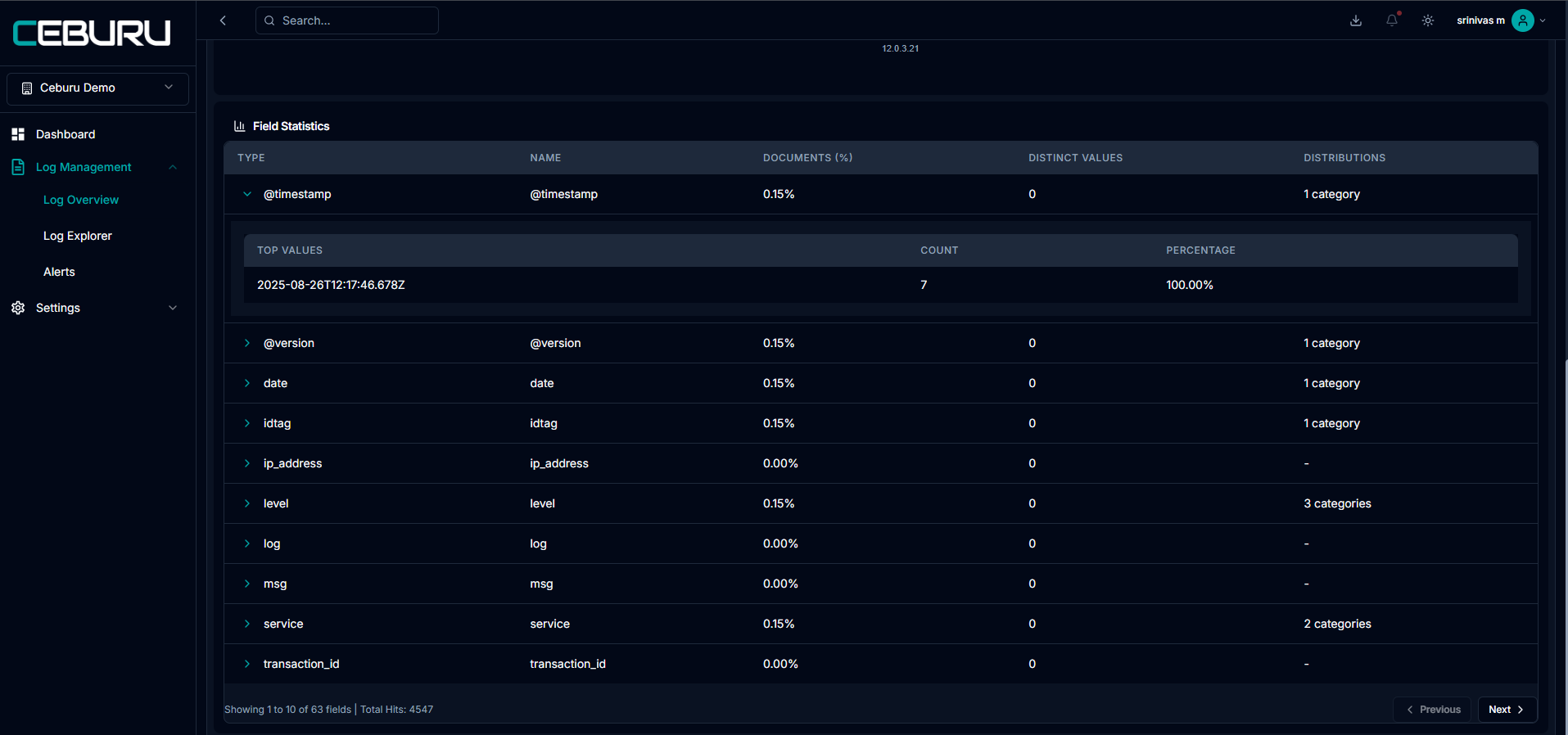

Field Statistics
View field usage, top values, and distributions to analyze log structure and detect anomalies.
