Log Management Installation and Configuration

Ceburu Log Management – Probe Installation and Setup

Ceburu supports both WinRM and non-WinRM configurations for log management.
This flexibility allows seamless integration in varied environments and supports multi-probe (dual probe) architectures for redundancy and scalability.

1. Prerequisites for WinRM-based setup

Before installation, ensure:

• WinRM is enabled on Probe, Forwarder, and Collector systems (for WinRM-based setup).

• Network connectivity is available between these components.

• Administrator privileges are available on the installation machine.

1. Go to https://portal.ceburu.com/ and log in

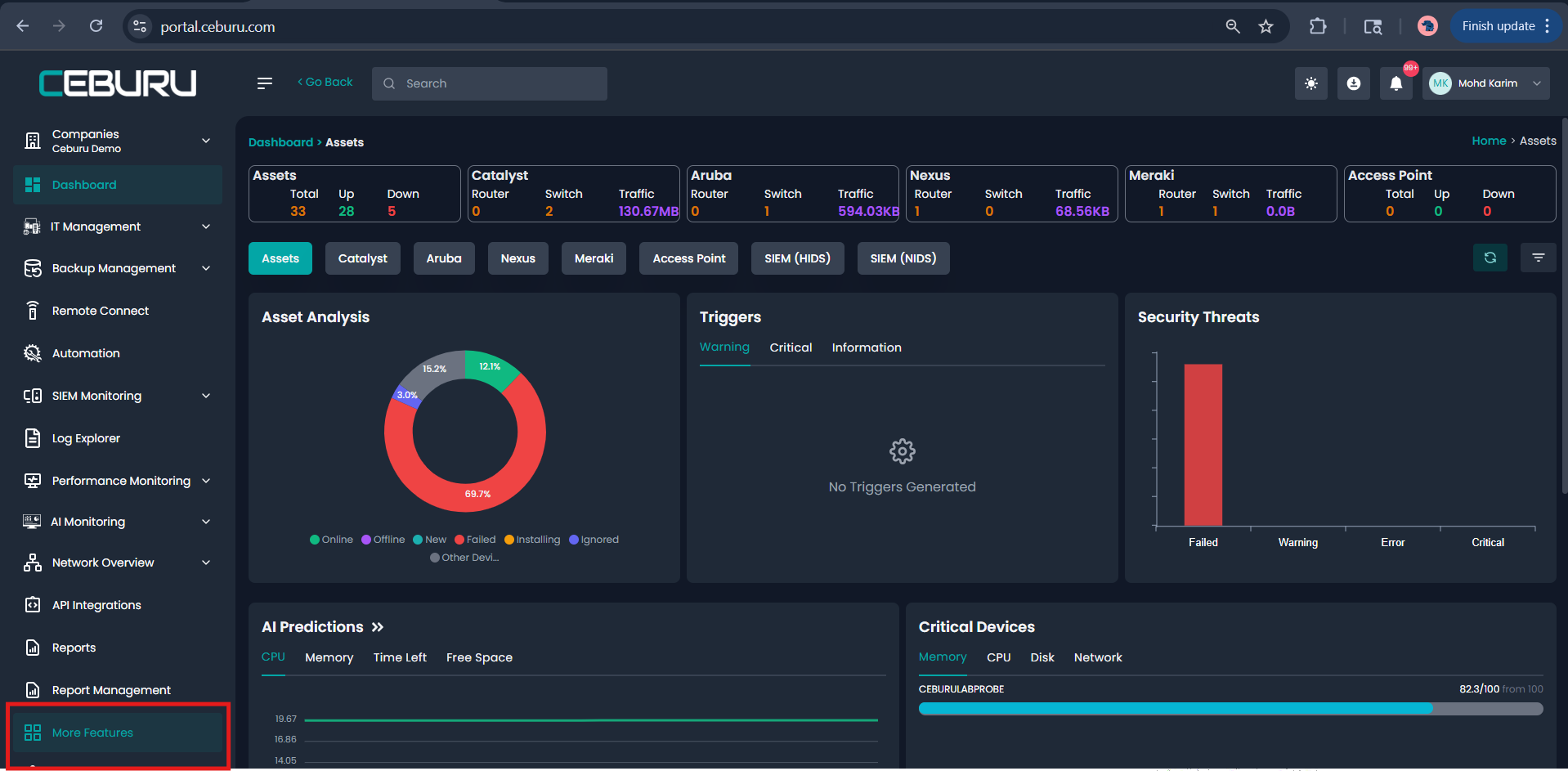

2. On the left-hand menu, scroll down and click More Features

3. You will be redirected to  https://portal.ceburuai.com where the Log Management module will open.

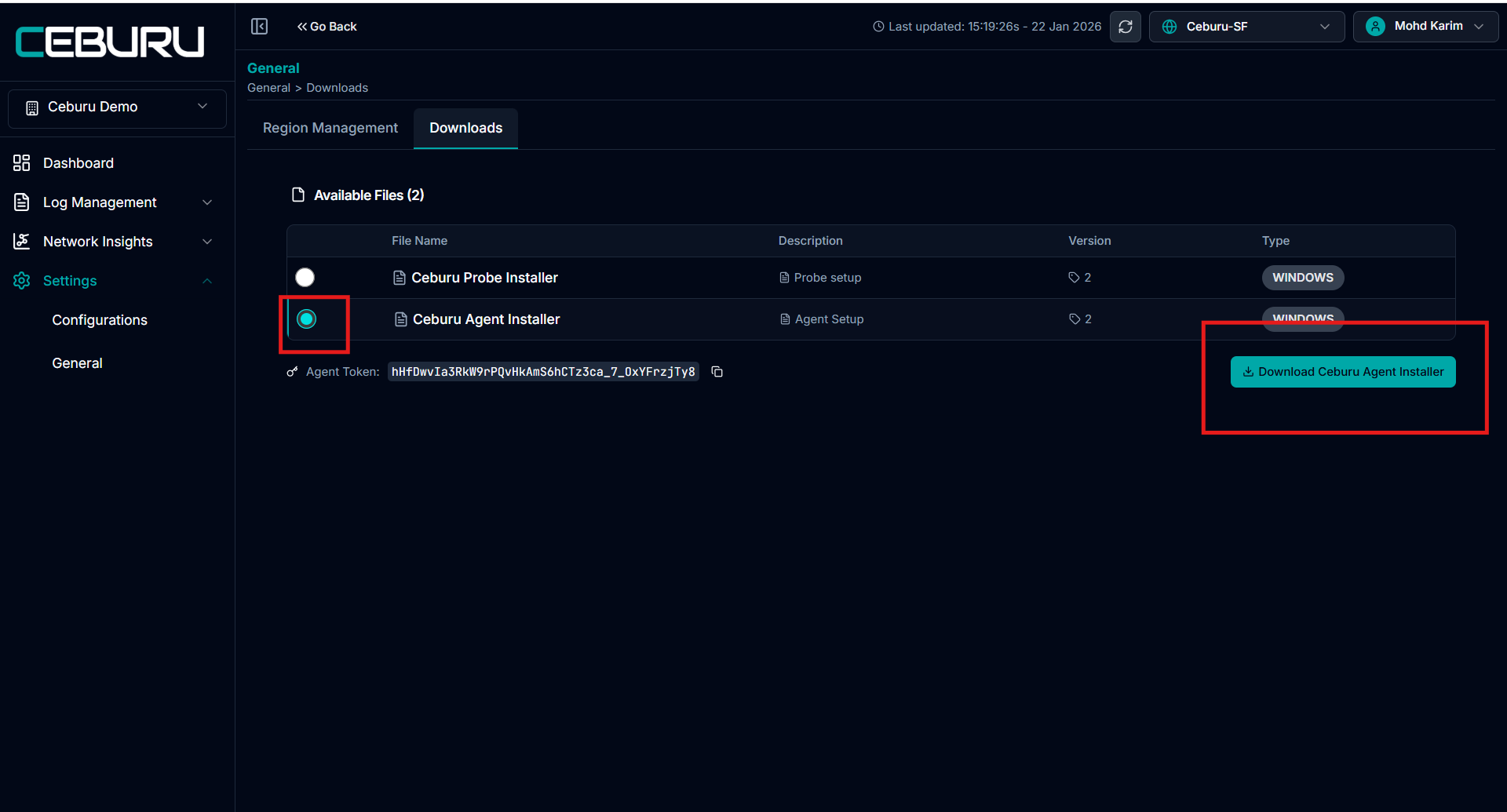

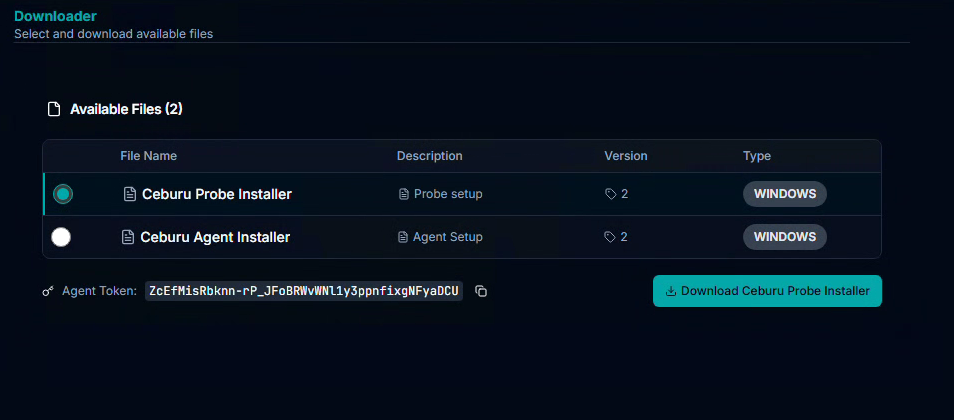

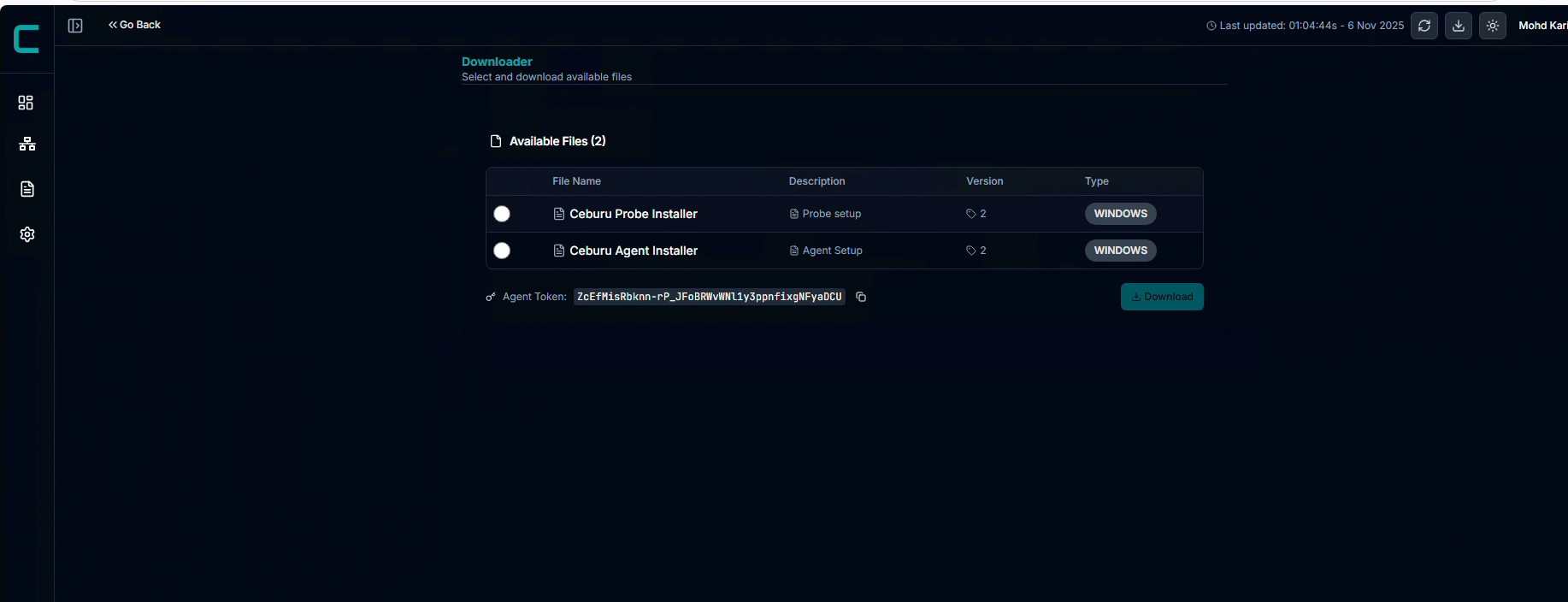

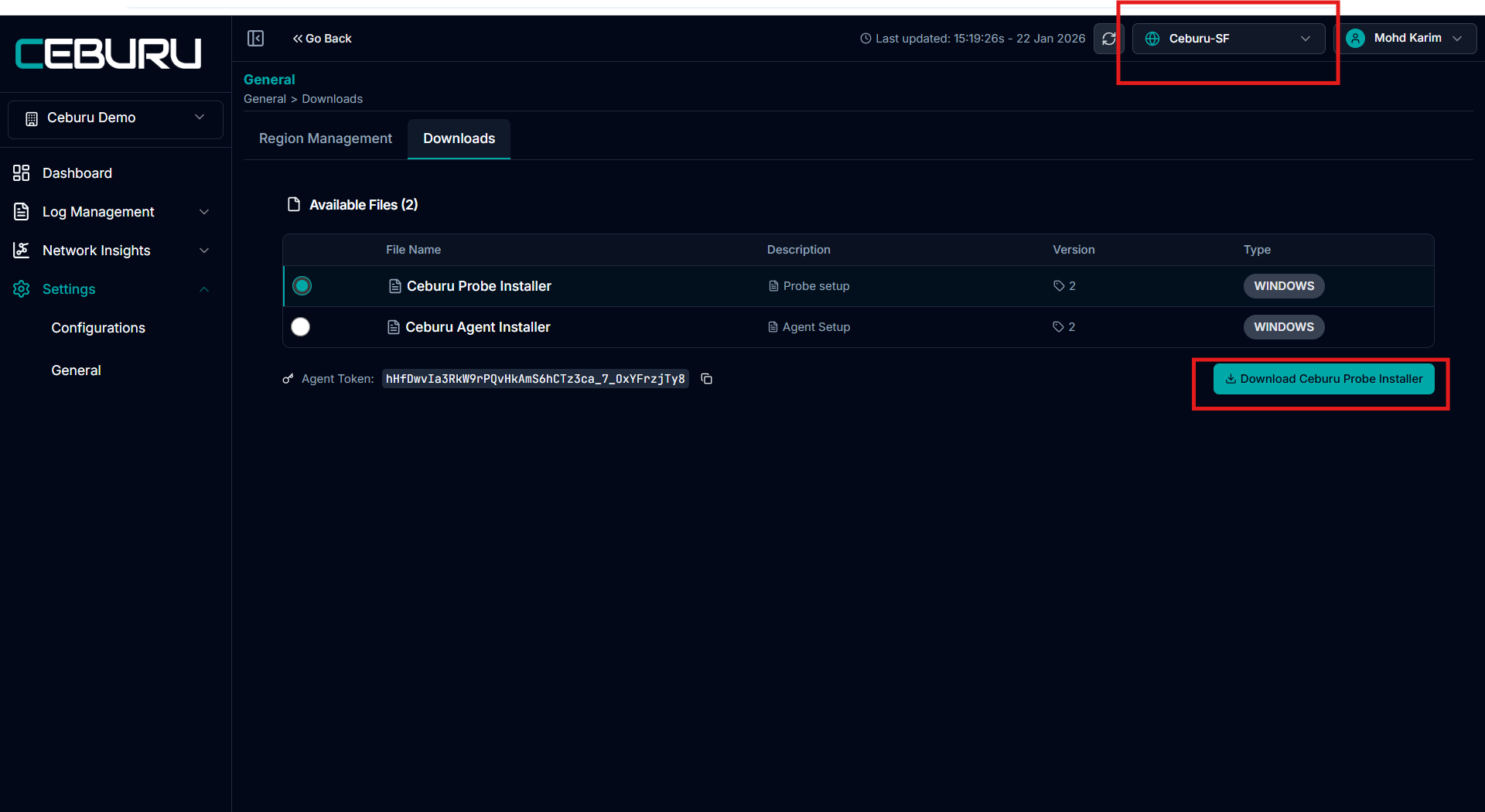

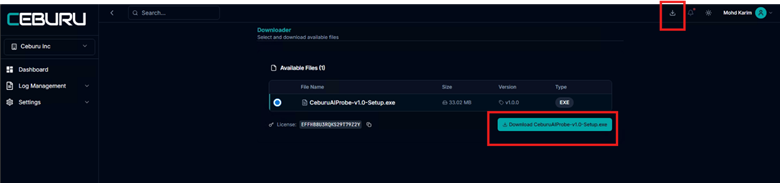

4. Click on the Download icon located in the dashboard.

5. Download and install the Ceburu Probe on the designated probe machine by following the on-screen installation instructions.

Note: Ensure the probe machine meets the minimum system requirements and has internet access for successful installation. WinRM must be enabled and properly configured before proceeding.

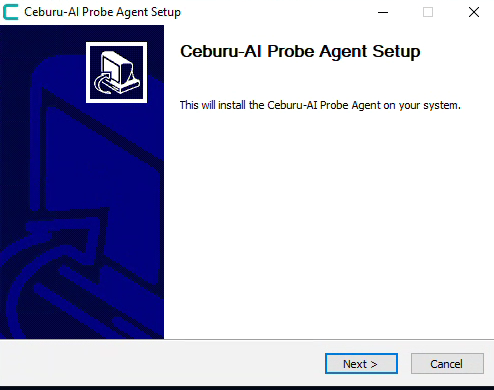

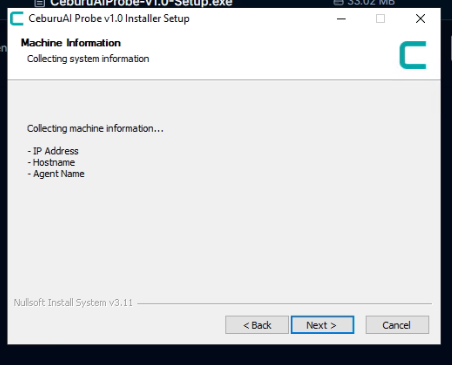

After downloading the installer, follow these steps:

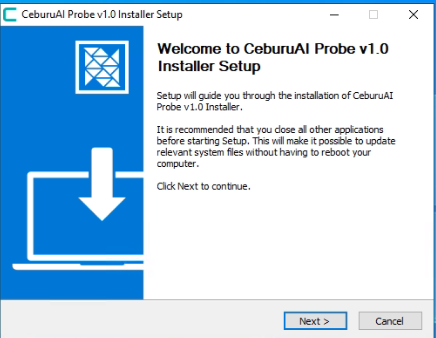

Locate the Installer: Go to your Downloads folder and double-click the CeburuProbeInstaller.exe file.

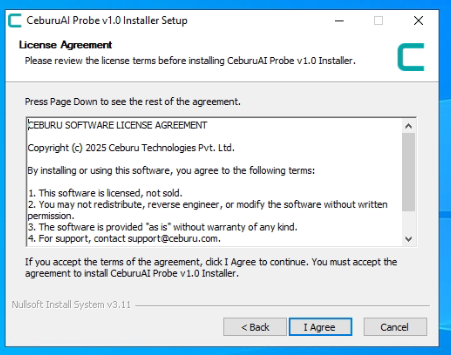

Accept the License Agreement: Review the license terms and click I Agree to continue.

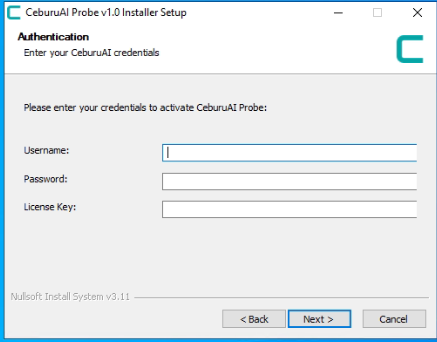

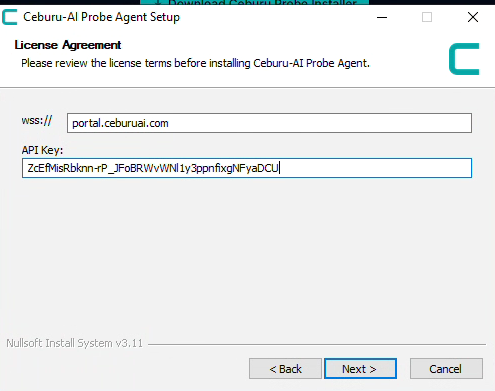

Configure Settings: Enter any required configuration details, such as the Portal URL or Authentication Key provided in the portal.

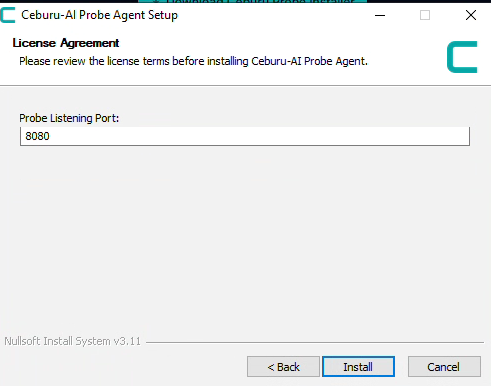

Provide the Probe Listening Port and click Install.

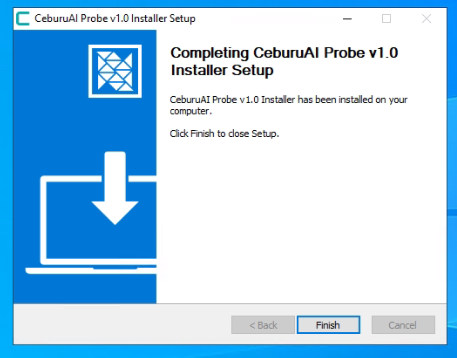

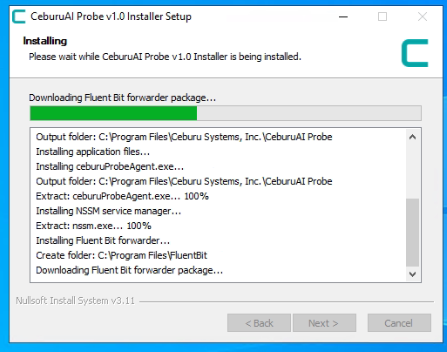

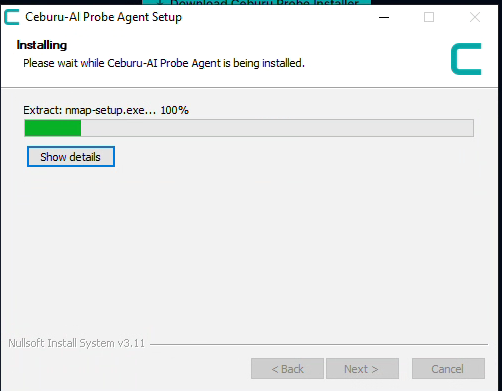

Complete the Installation: Click Install to begin the installation process. Once complete, click Finish to exit the setup.

Verify Installation: After installation, the probe service should start automatically. You can verify this in the Services panel by checking for Ceburu Probe Service status

After installation:

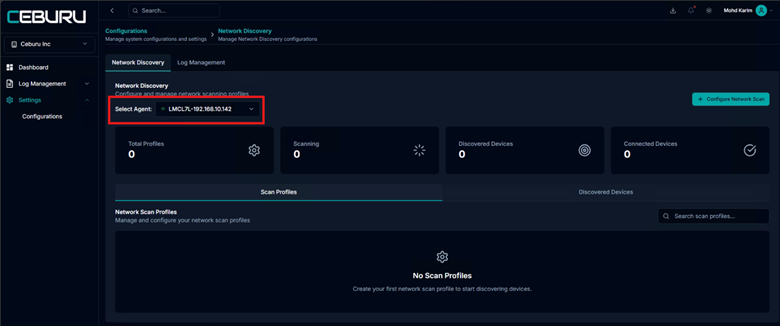

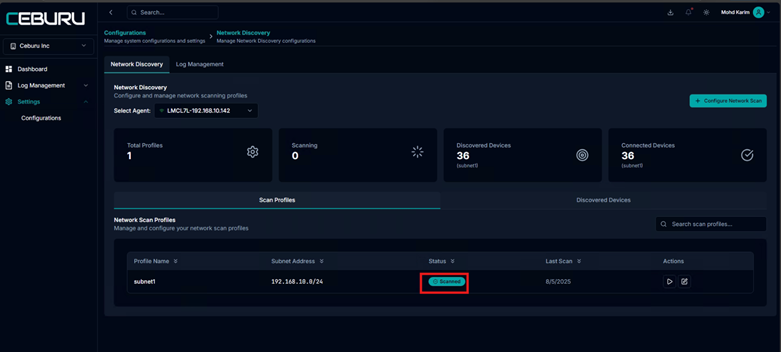

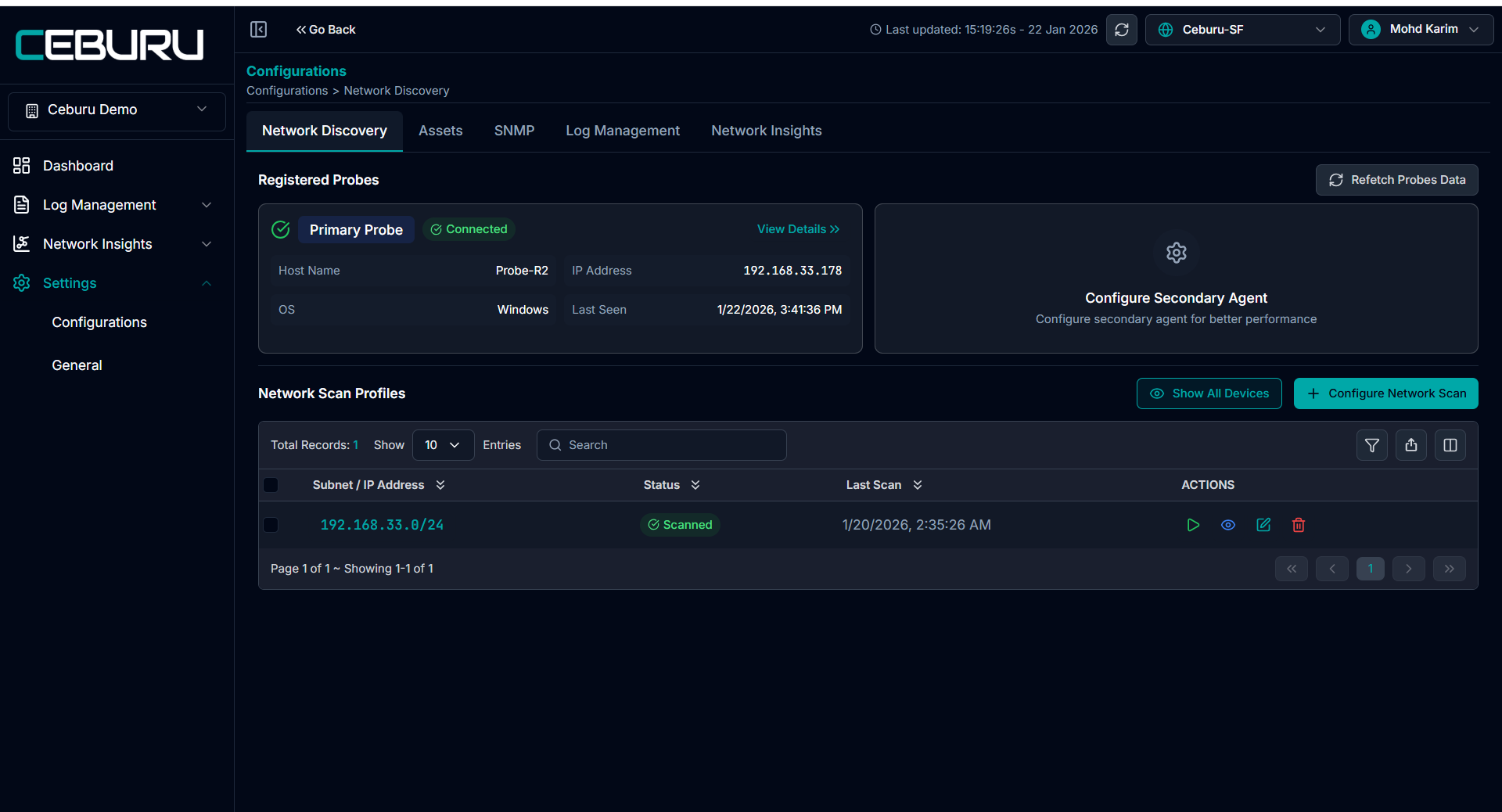

1. Navigate to Configurations → Network Discovery in the Ceburu Portal.

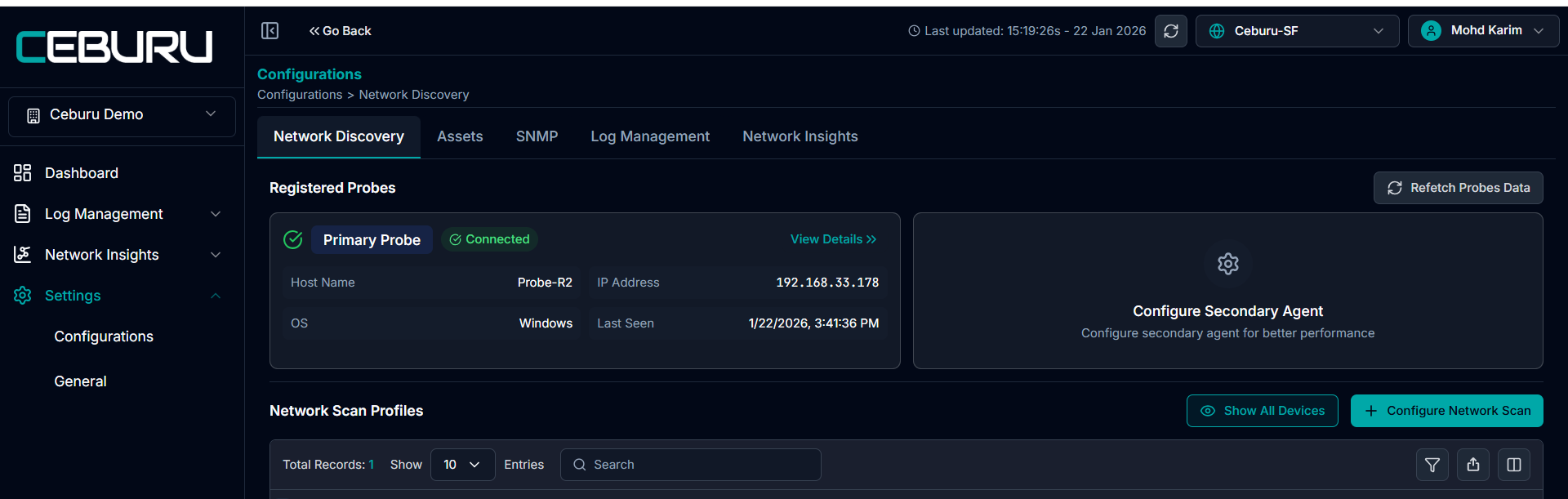

2. You will see the registered probes listed under Registered Probes:

   • Primary Probe – Main discovery node responsible for initiating network scans and device communication.

   • Secondary Probe – Optional backup or extended discovery node used for redundancy or distributed scanning.

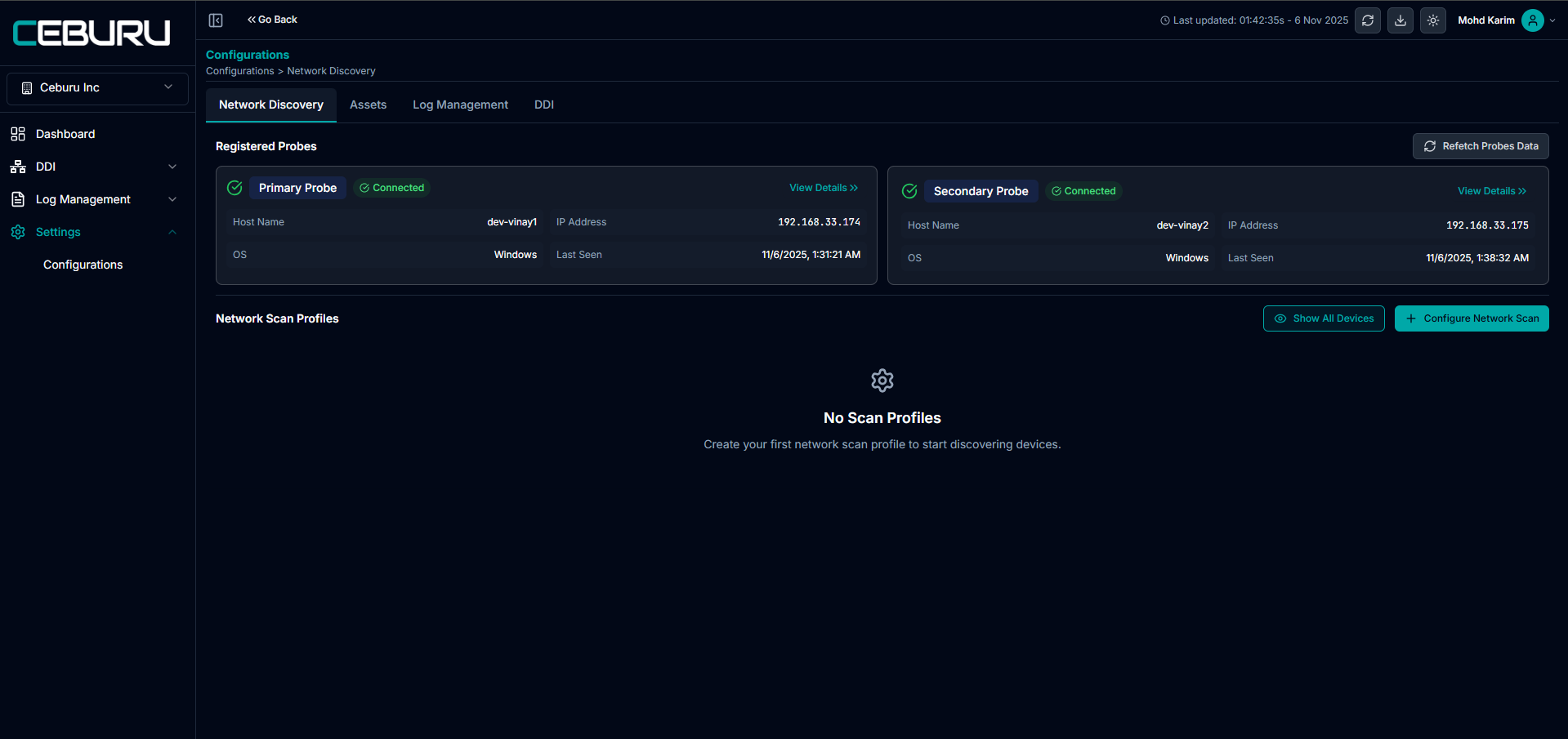

3. Both probes should display a Connected status once communication is successfully established.

 Note: Adding a Secondary Probe is optional. It can be used to improve coverage or provide failover capabilities but is not mandatory for the setup to function.

If the Primary Probe (and optional Secondary Probe, if configured) is connected, the setup is complete.

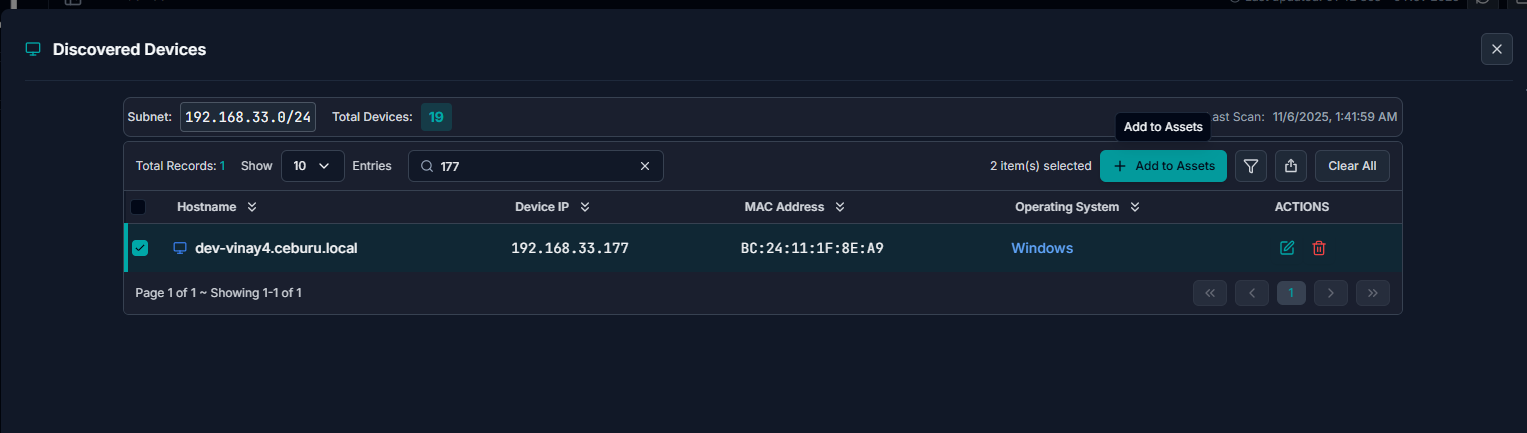

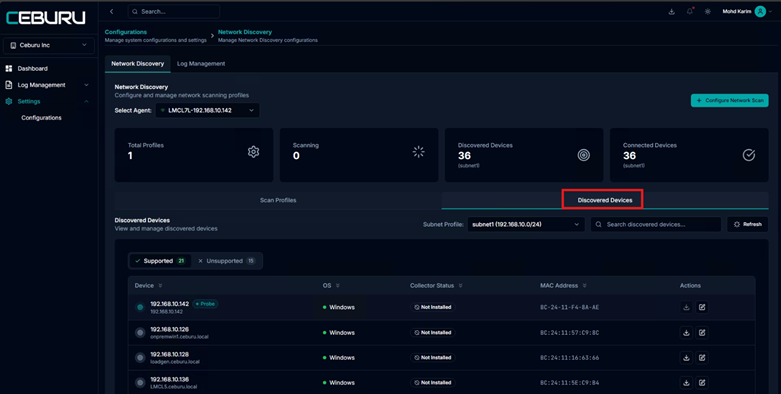

 Viewing Discovered Devices

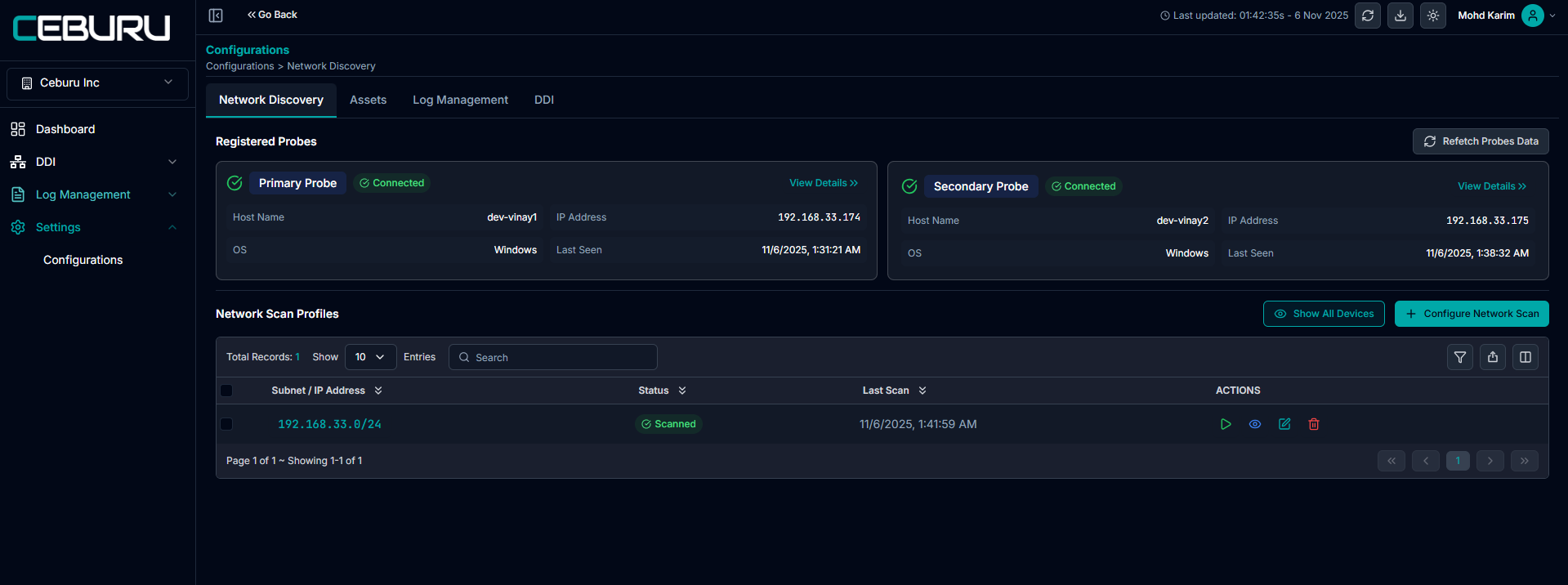

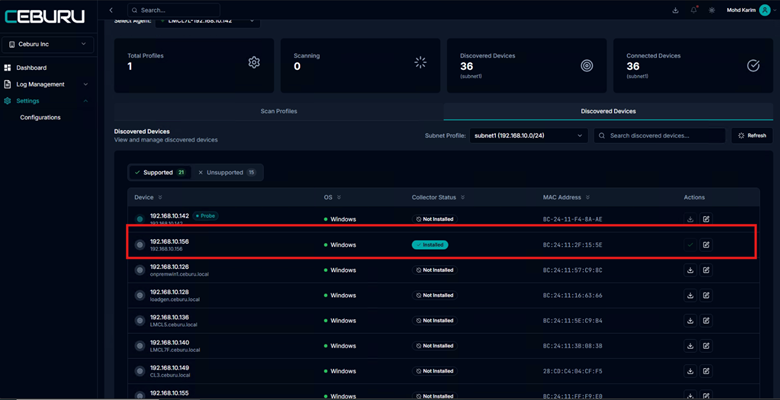

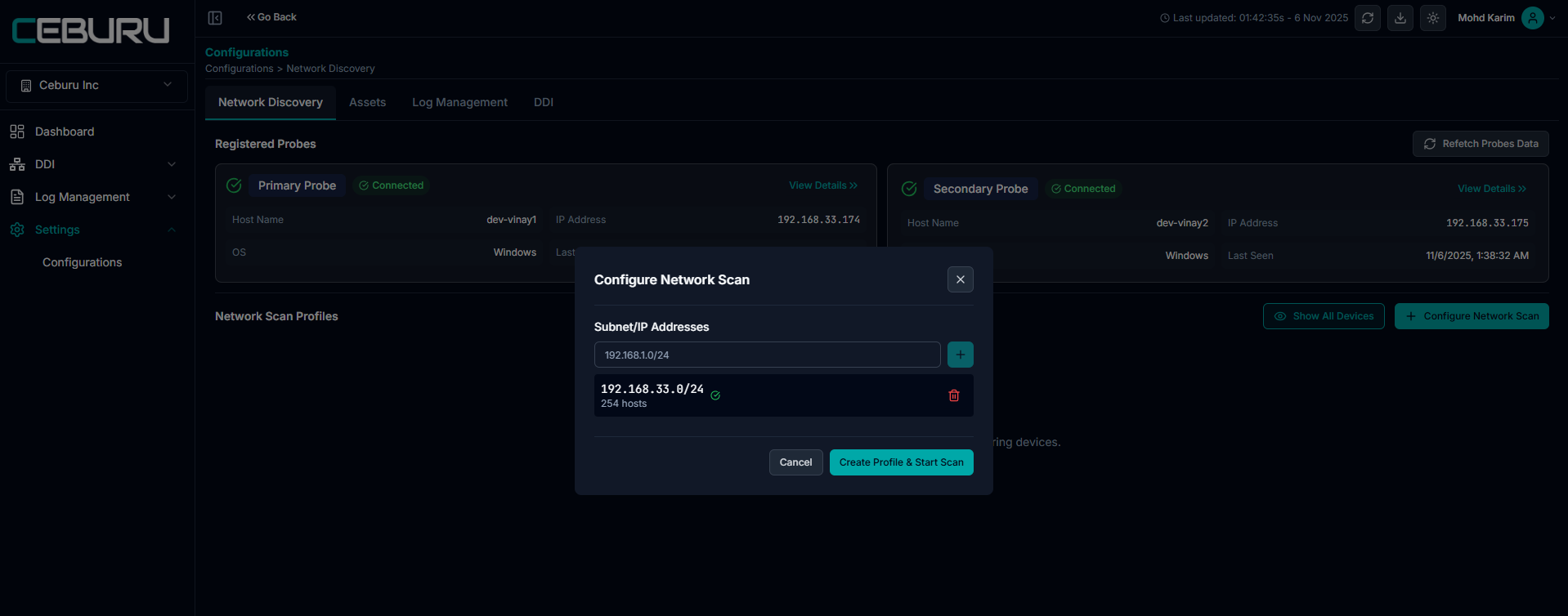

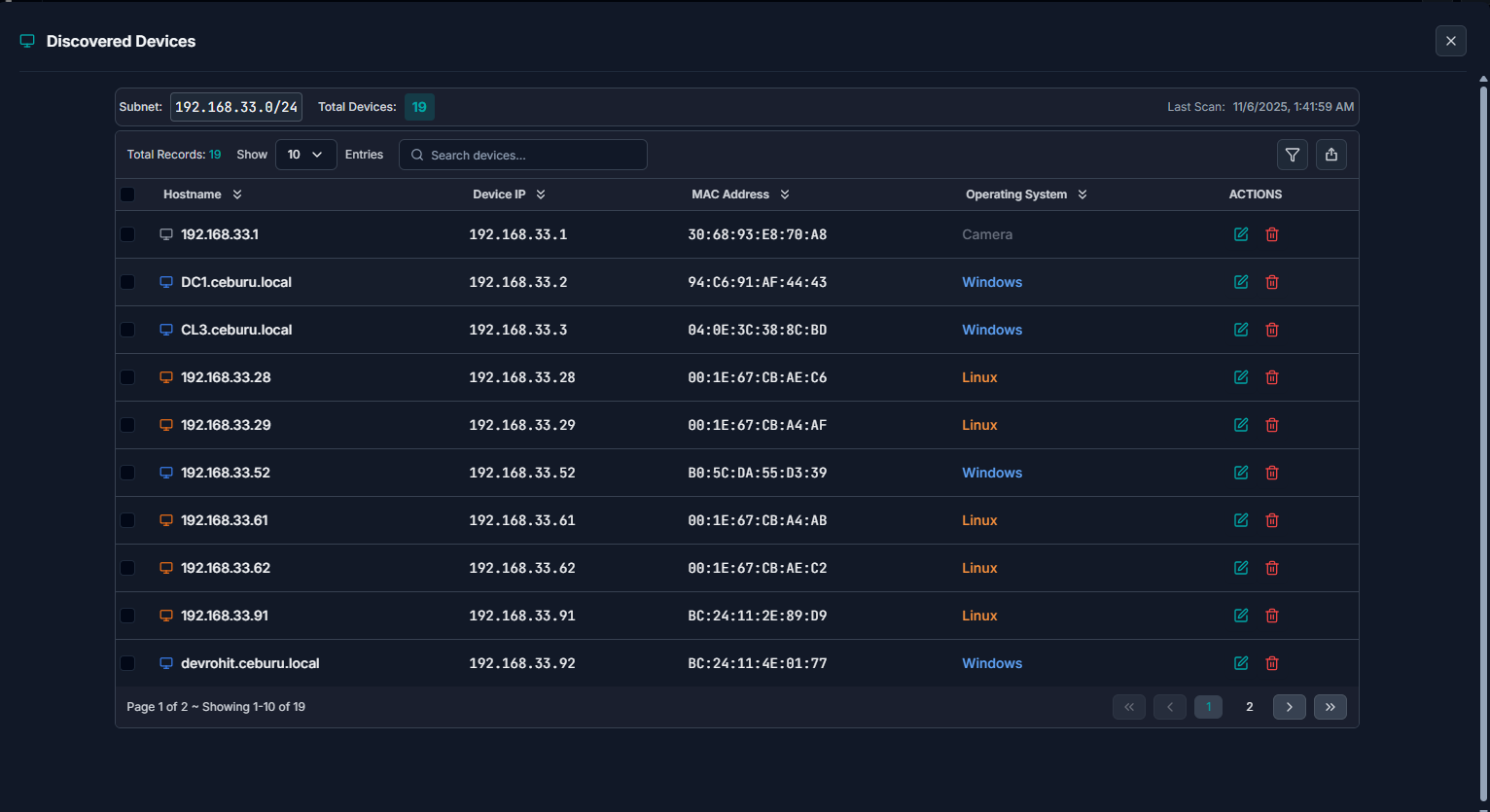

• After a successful scan, click the eye icon next to the scan profile to view the discovered devices.

To add the devices to your managed inventory, select the desired devices and click Add to Assets.

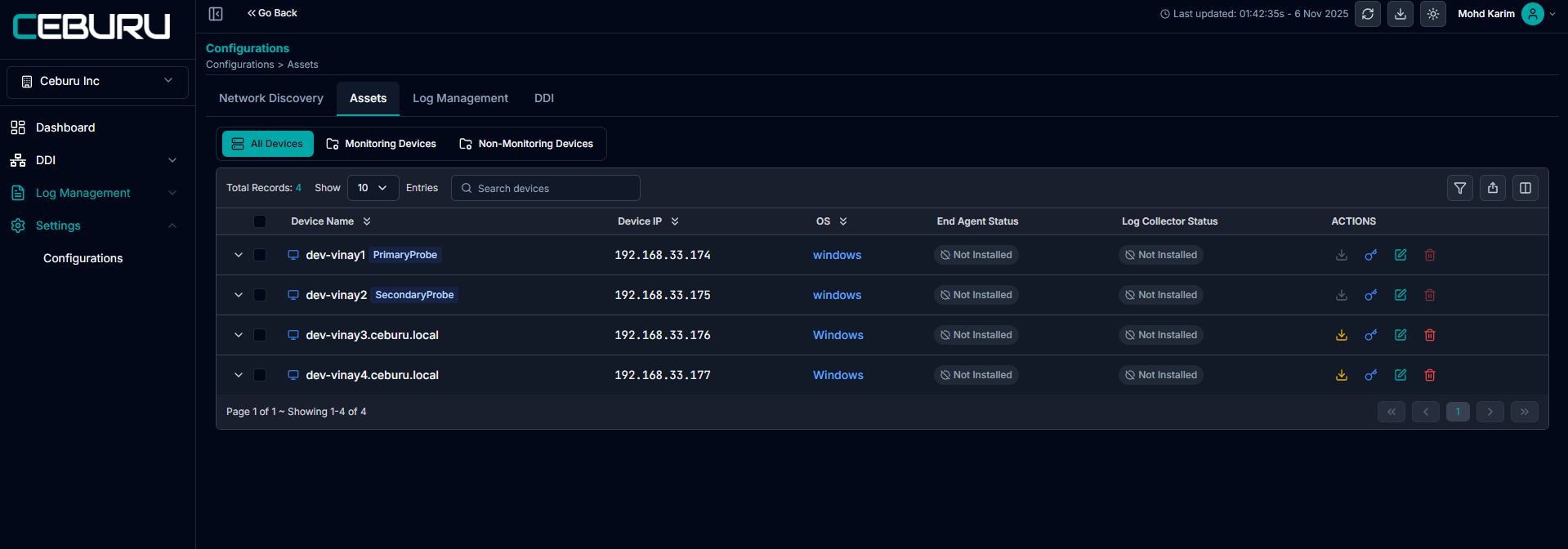

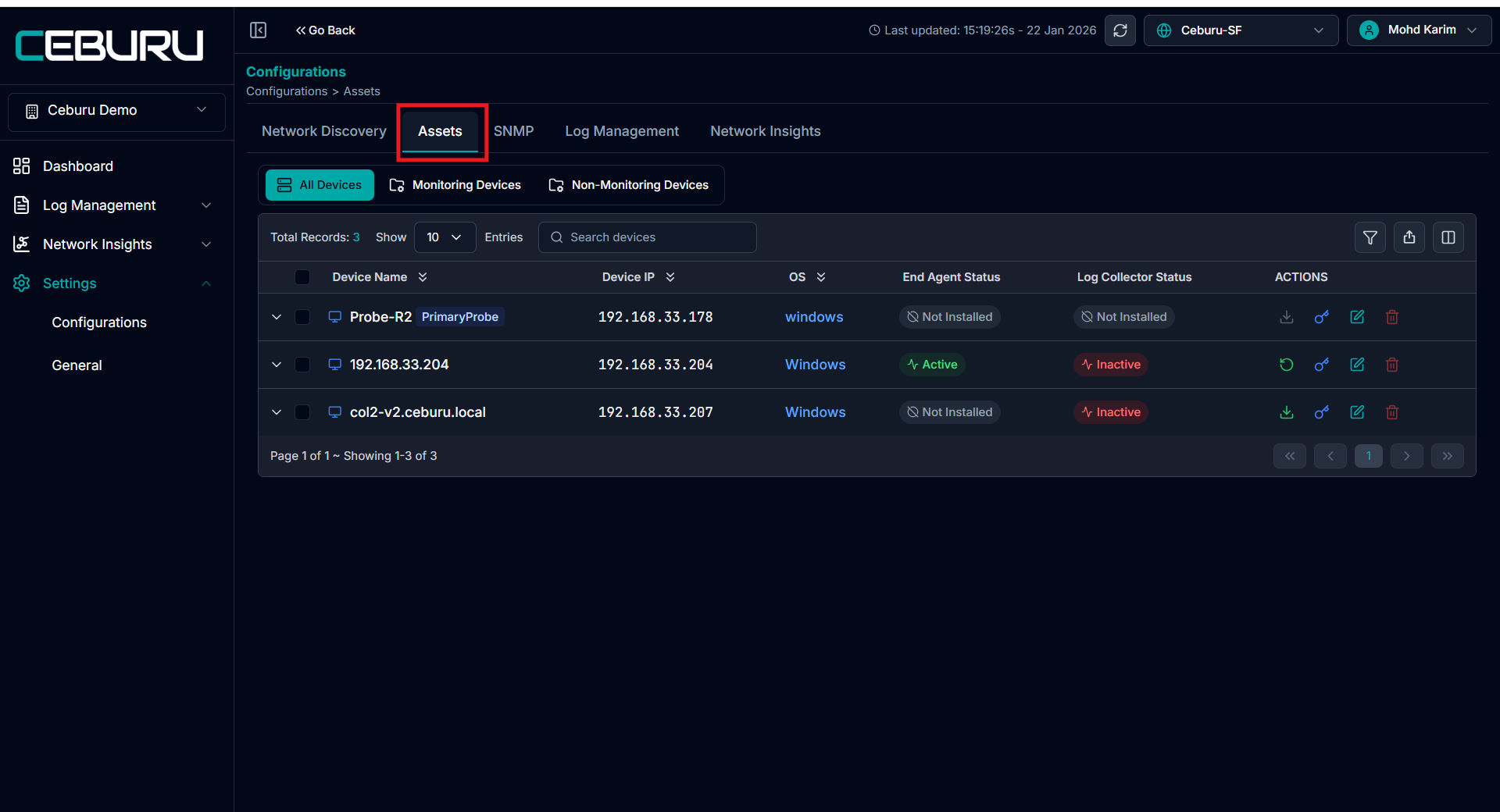

Once added, devices will appear under Configurations → Assets.

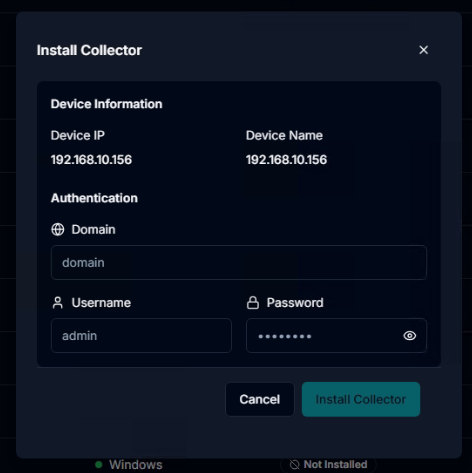

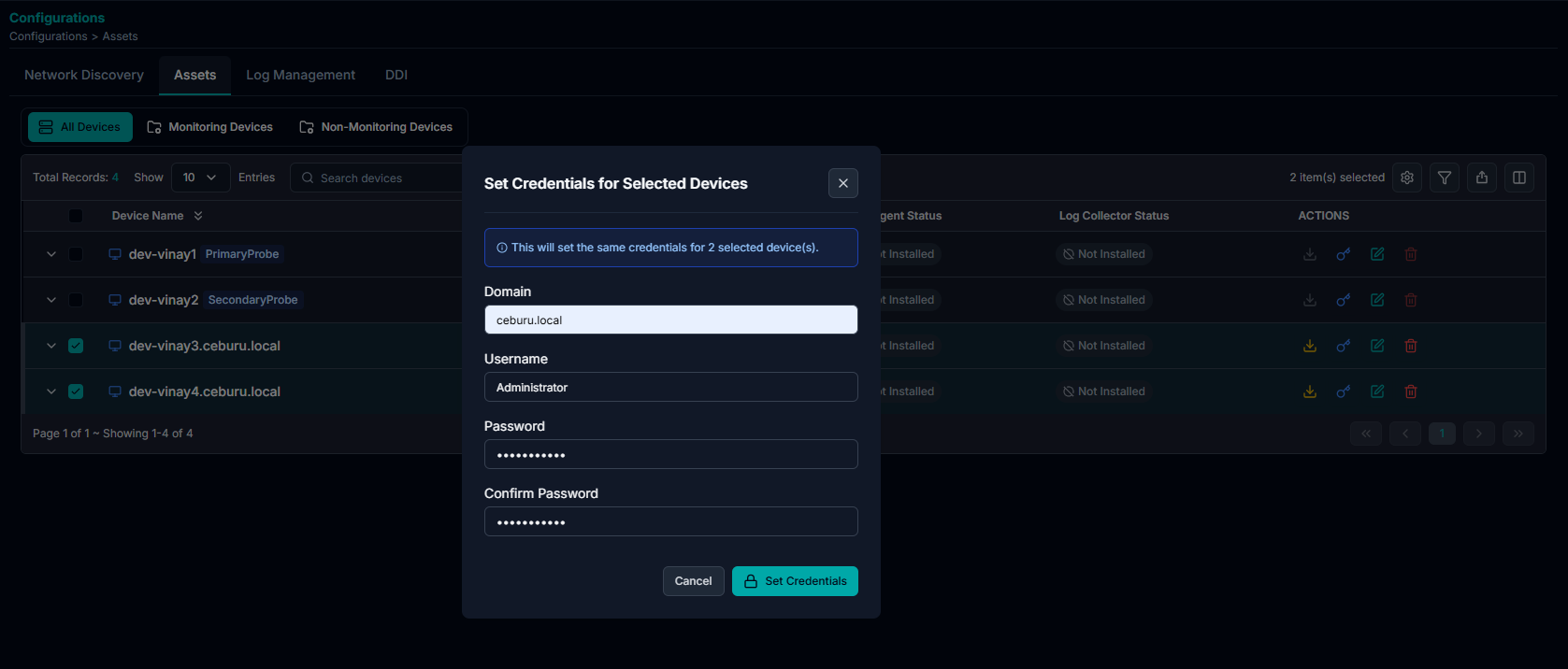

Setting Device Credentials

Before deploying the End Agents, credentials must be set for the target devices:

1. In the Assets tab, select the devices you want to configure.

2. Click the Key icon or select Set Credentials from the top-right dropdown.

3. Enter:

   • Domain

   • Username

   • Password and Confirm Password

4. Click Set Credentials to apply the credentials to the selected devices.

Installing the End Agent

After setting credentials:

1. Select the devices where you want to install the Ceburu End Agent.

2. Click the dropdown menu in the top-right corner and choose Install Agent.

3. The installation process will automatically begin on the selected systems.

Once installed, the End Agent Status will update to Active.

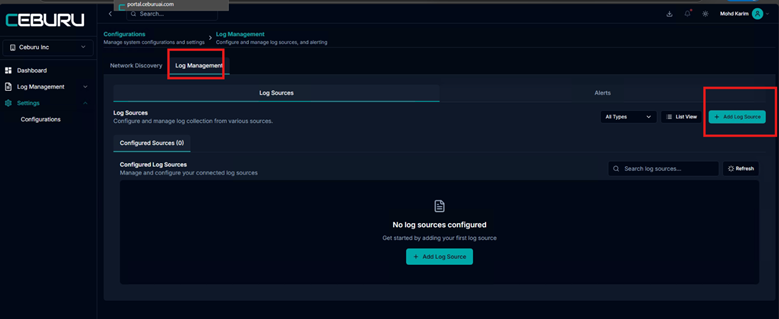

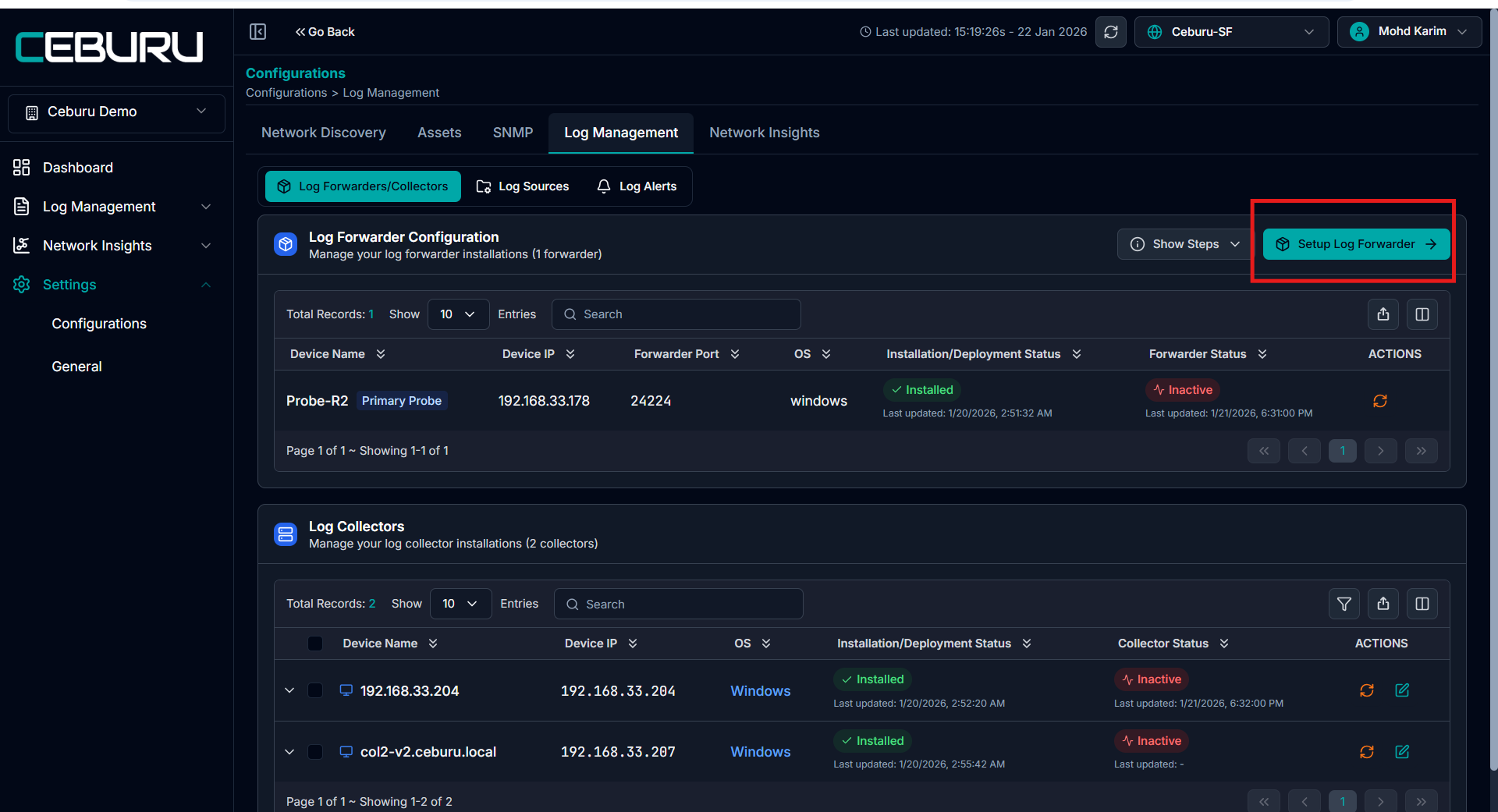

Go to the Log Management tab. Click on Add Log Source in the Log Sources section.

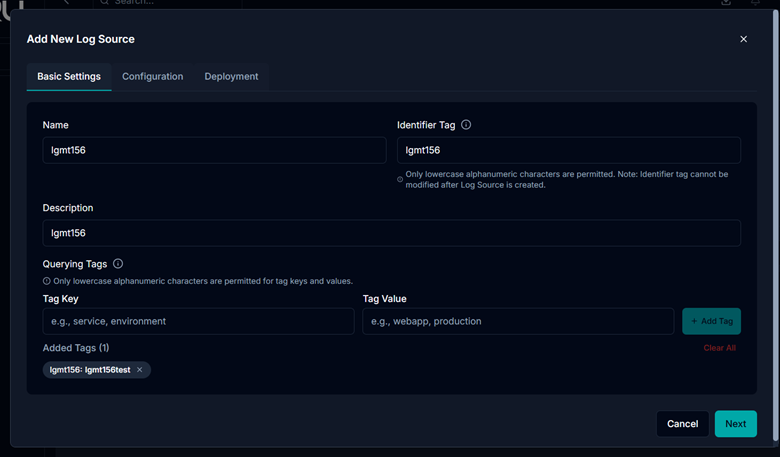

Enter Log Source Details

• Identifier Tag: Enter a unique identifier for the log source.
• Querying Tags: Add any tags that will help filter or query the logs.

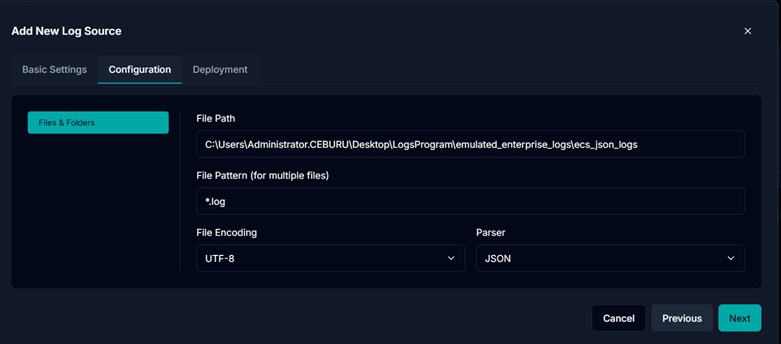

Specify Log File Configuration

• File Path: Provide the absolute path to the log file on the device.
• File Pattern: Define any file matching pattern (e.g., *.log).
• Parser: Choose the appropriate parser to interpret the log format.

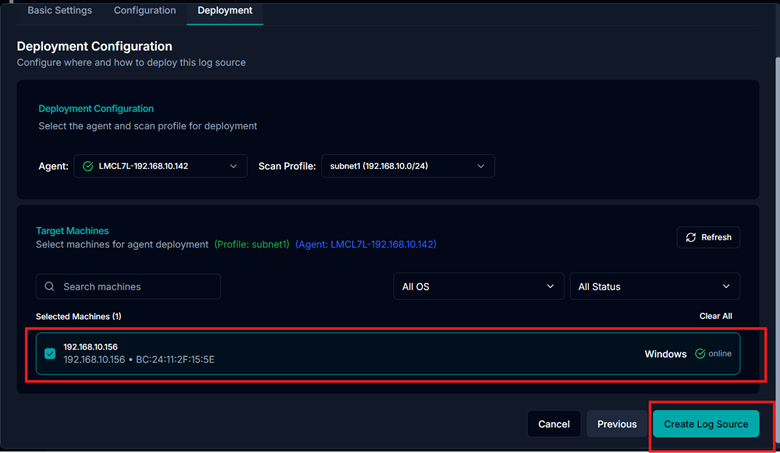

Choose the device where the logs are located. Click Create Log Source to complete the setup.

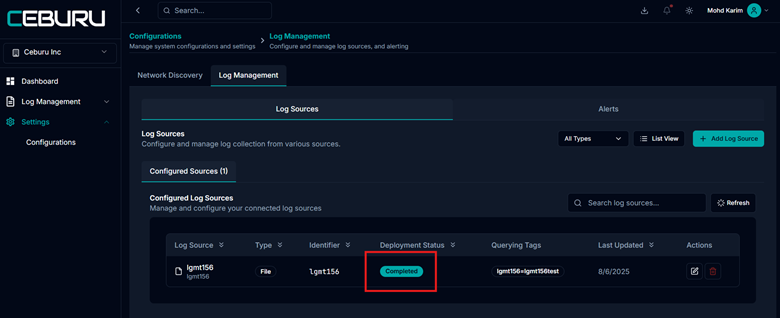

Once added, the new log source will appear in the Log Sources list for monitoring and analysis.

Make sure the file path and permissions are correct on the target device to avoid collection errors.
