Configuring Organization’s Network Parameters

Created by Lakshmi Vasanth, Modified on Wed, 28 Aug, 2024 at 12:15 PM by Lakshmi Vasanth

You should configure a few parameters for Ceburu Installers to configure your organization’s specific network information like Network Name, IP Range, Scan Host IP, Public IP, etc.

1. Use the login URL shown after the infrastructure installation to log into the On-Prem Ceburu application.

2. Navigate to Settings > Configurations > Asset Management.

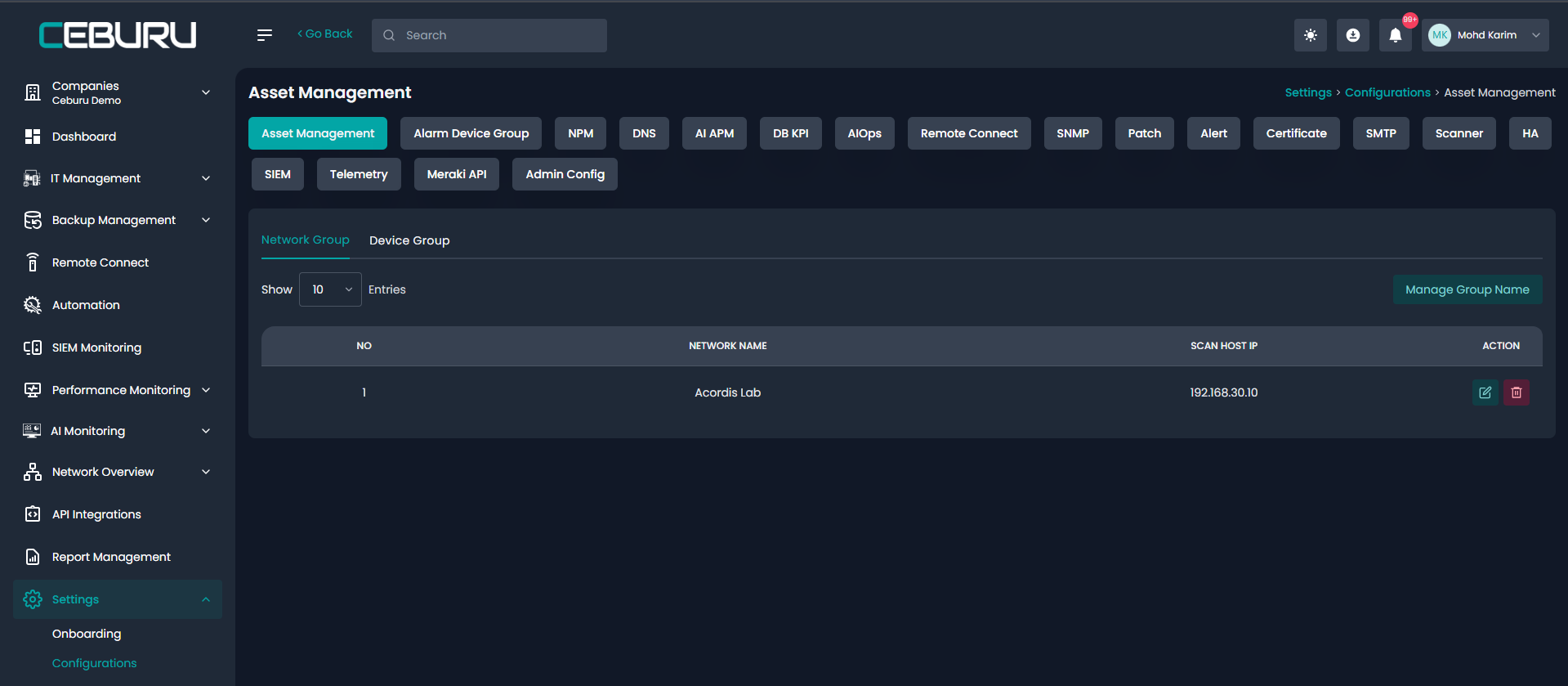

The Asset Management page is displayed.

3. Click Add Network Group.

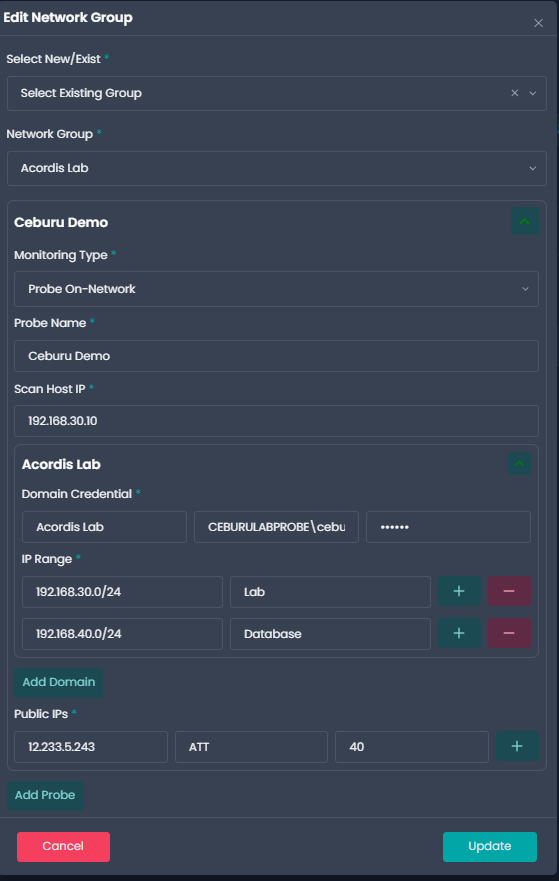

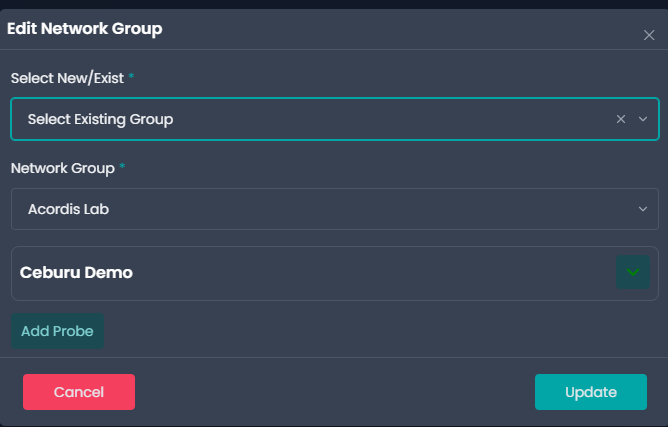

The Add Network Group dialog is displayed.

4. Enter or select the required values in the respective fields.

Please refer to the table below for field names and their descriptions.

Note: All fields with an asterisk (*) are mandatory.

Field	Description
Select New/Exist	Create a new group or select an existing one for the configuration
Network Group	Name of the network group
Scan Host IP	IP address of the host machine to be scanned for gathering network and system information
Subnet Type	Category of the subnet to define the size and range of the network
IP Range - Range of IP addresses allocated for specific subnets
Subnets	Specific subnet addresses used to organize network traffic
Place	Specific assignment of the IP address within the subnet
Hybrid Version	Both On-Prem and cloud-based features are allowed Note: If this option is selected, you must configure the Public IP address and the corresponding ISP.
100% On-Prem	Components and data are hosted and managed entirely within the organization's physical infrastructure, without using cloud services.

5. Click Save.

The configuration is completed.

Now, you need to download the Ceburu Infrastructure (Windows) to install the dependencies for the Ceburu application. For more information, refer to Downloading and Installing Ceburu Infrastructure (Windows).
