Ceburu ServiceNow Service Graph Connector Setup

Status: Current setup guide for the Service Graph connector. This connector is for CMDB inventory, topology context, and current health data. It does not collect alarms.

Walkthrough video: Service Graph Connector setup

What this connector does

The Ceburu ServiceNow Service Graph connector makes customer-scoped Ceburu infrastructure available to ServiceNow for CMDB synchronization.

Ceburu inventory and health
        ↓ HTTPS GET + Bearer API key
 ServiceNow Service Graph connector / ETL
        ↓ identification and reconciliation
 ServiceNow CMDB CIs and relationships

Use it to collect networks, discovered assets, the latest health snapshot, AIOps devices, device specifications, and interfaces. Use the separate EM Events connector for alarms.

Before you begin

Confirm that you have:

Ceburu access that permits API-key management.
The correct customer selected in the Ceburu portal.
The customer’s Ceburu API base URL, such as https://<ceburu-host>.
A ServiceNow connector/ETL target and an encrypted credential record.
Approved CMDB class, identification, reconciliation, and relationship rules.
Network access from the ServiceNow instance or MID Server to the Ceburu API.

Generate a dedicated key for each connector instance. Do not reuse an EM Events key or a normal Ceburu user credential.

Generate the Service Graph API key

1. Open Manage API Keys

In Ceburu, select the intended customer, open Integrations Hub, and select Manage API Keys.

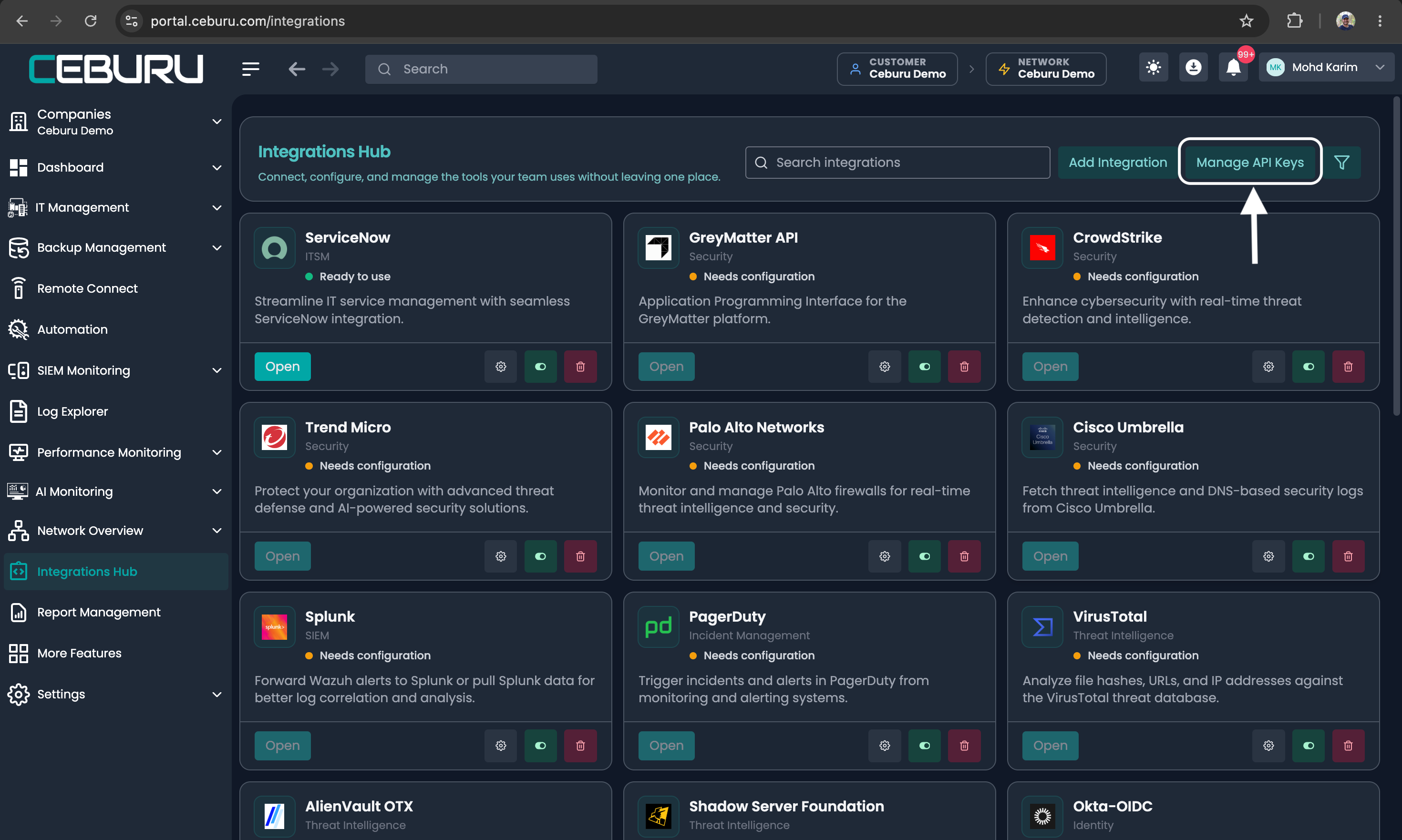

Integrations Hub with Manage API Keys highlighted

2. Start key generation

On the API Keys page, select Generate API Key.

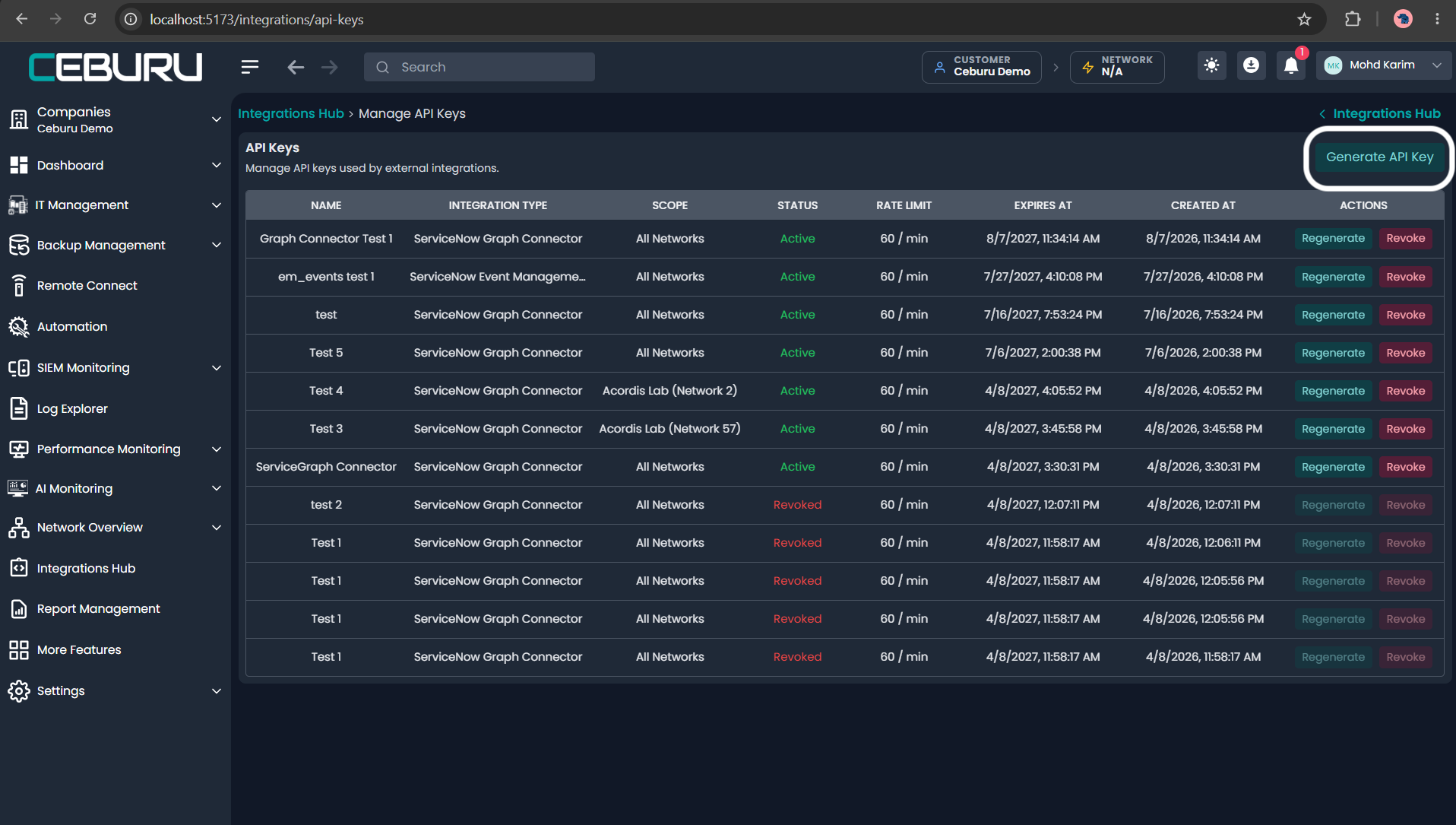

Manage API Keys with Generate API Key highlighted

3. Select the connector type

Open Integration Type and select ServiceNow Graph Connector.

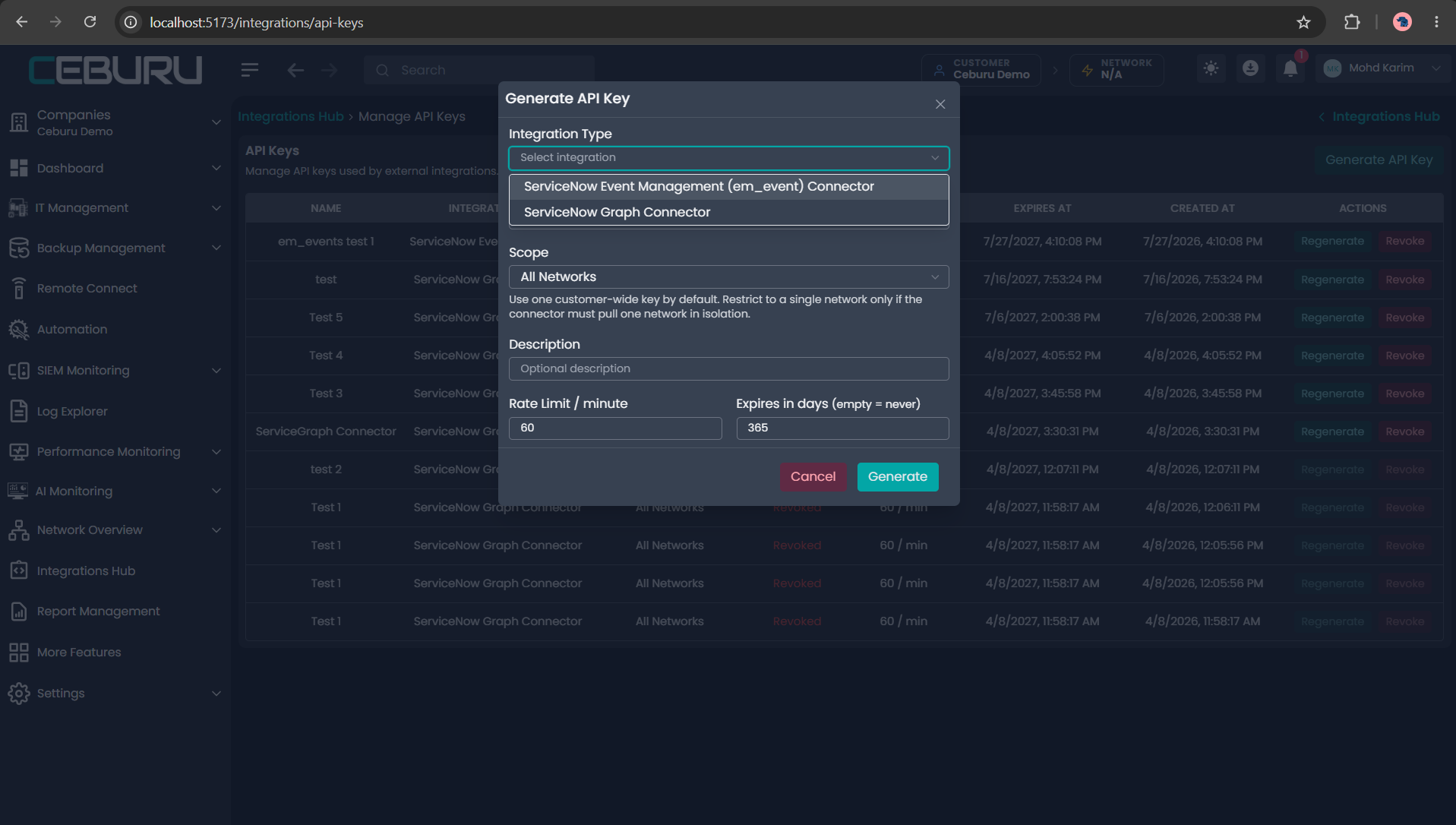

Integration Type menu showing the two connector choices

The selection automatically assigns the four Service Graph endpoint permissions. Administrators do not enter endpoint paths manually.

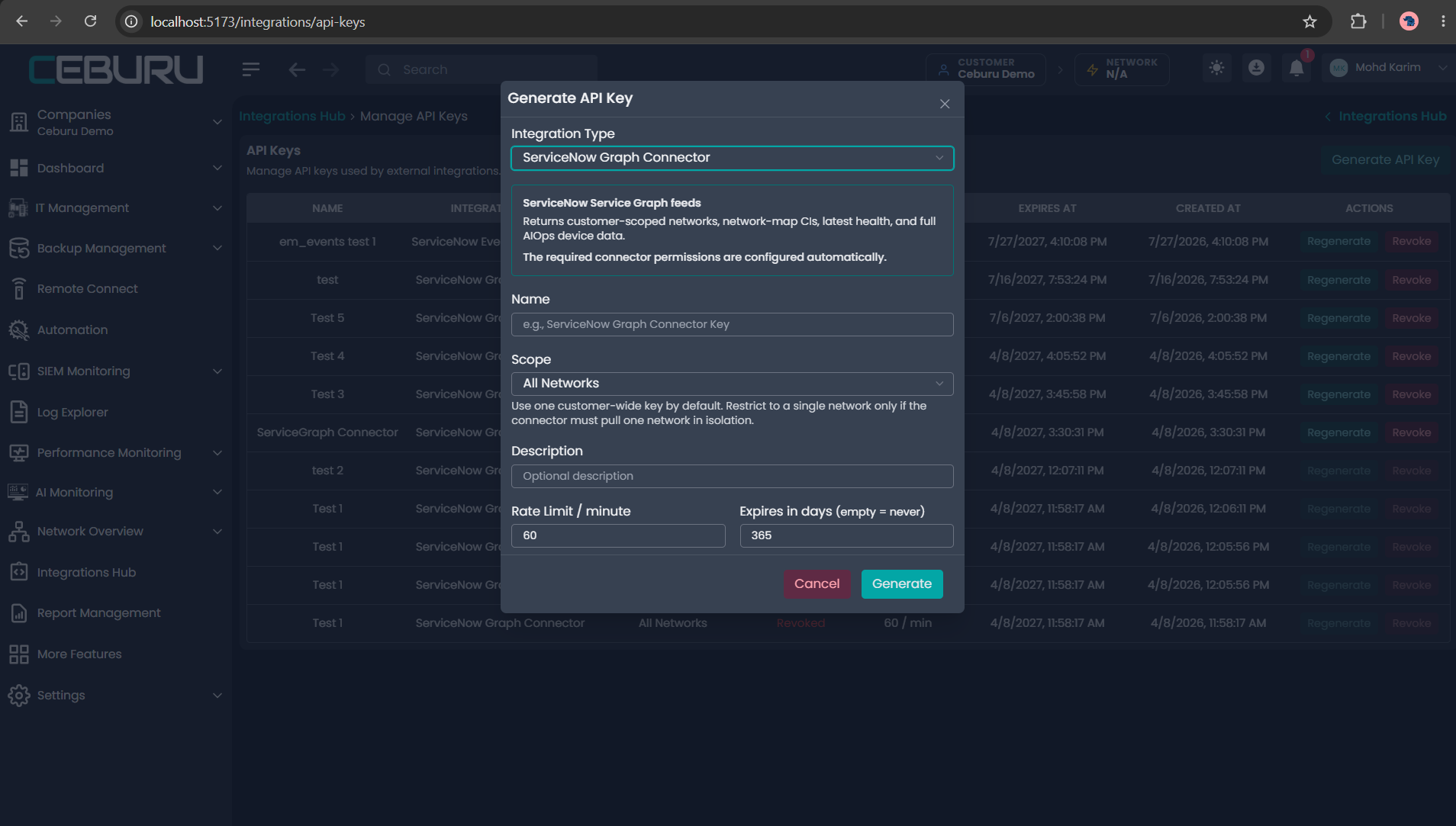

ServiceNow Graph Connector selected in the key form

4. Complete the key settings

Field	Recommended value	Guidance
Integration Type	`ServiceNow Graph Connector`	Required; determines the endpoint allowlist
Name	`Production ServiceNow Graph`	Use a name that identifies environment and owner
Scope	`All Networks`	Recommended when one connector represents the whole customer
Scope	One named network	Use only when that connector must be isolated to one network
Description	Connector purpose or ServiceNow instance	Optional but recommended for operations
Rate Limit / minute	`60`	Current UI default; raise only when the collection schedule and page count justify it
Expires in days	`365` or customer policy	Current UI default is 365; an empty value means no automatic expiration

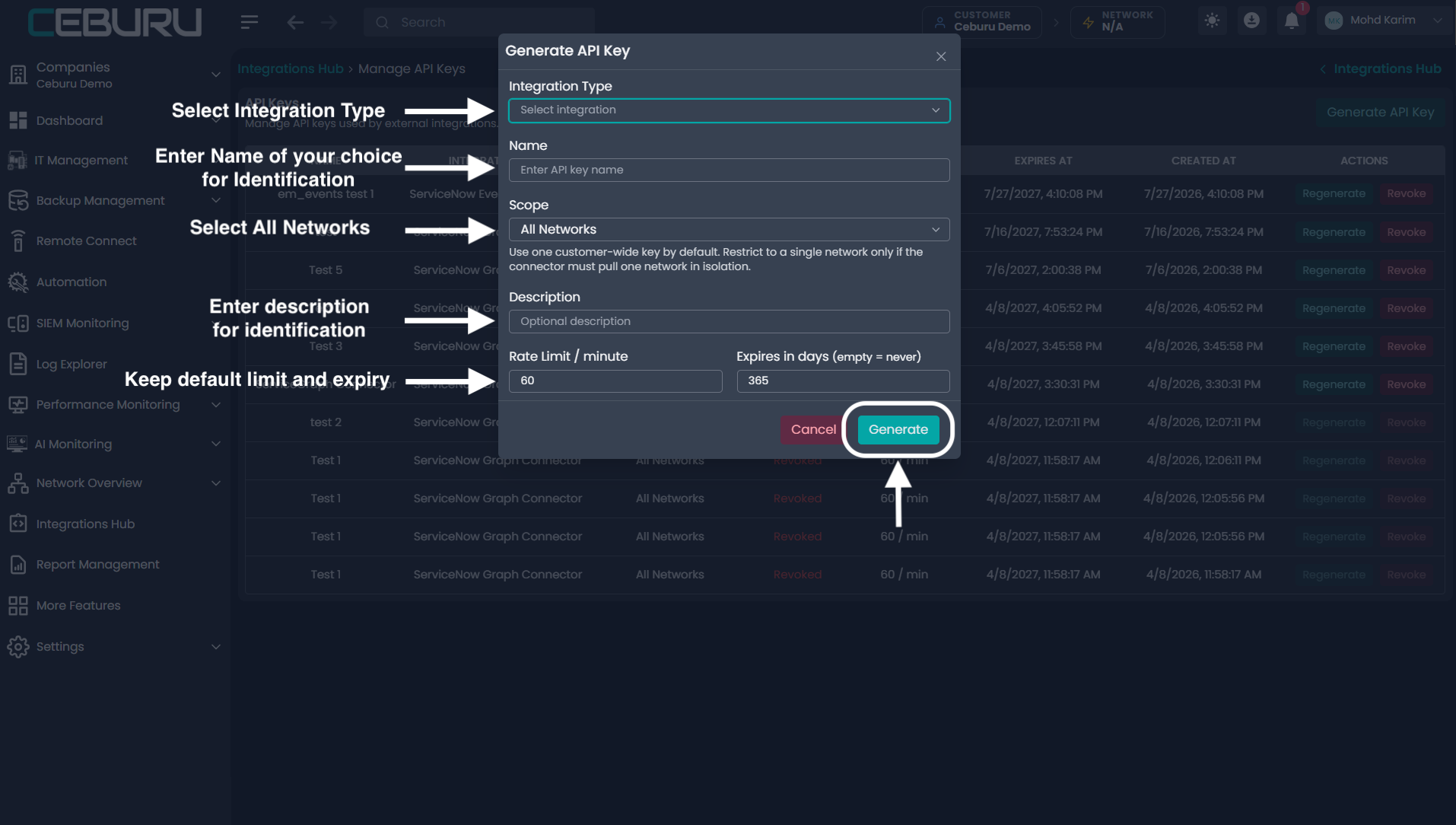

Annotated API key form fields

Select Generate.

5. Copy and protect the raw key

The raw key appears once. Select Copy & Close, then place the value immediately in the approved encrypted ServiceNow credential or secret store.

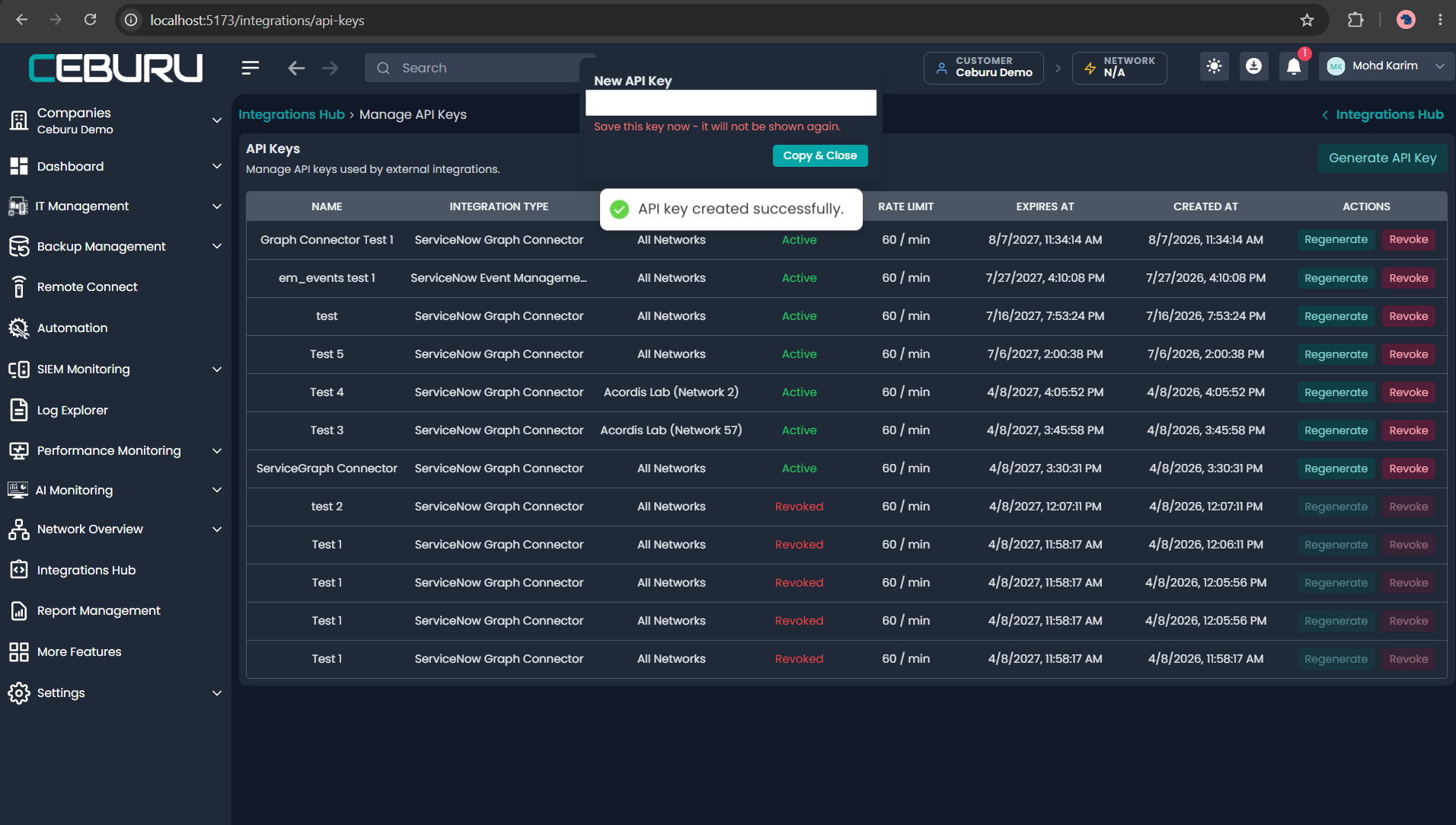

One-time API key notice after successful generation

Screenshot 6 — The raw key cannot be displayed again after this notice closes.

Do not place the key in screenshots, tickets, source control, query parameters, application logs, or ServiceNow ECC Queue payloads.

Configure the ServiceNow connector

In the ServiceNow connector or ETL configuration:

Set the Ceburu base URL.
Reference the encrypted API-key credential.
Select a MID Server when direct outbound access is unavailable or prohibited.
Use the networks endpoint as the connection test.
Configure the collection schedule and page size. The API default is 50 and the maximum page size is 200.
Map Ceburu source identifiers to the approved CMDB classes and reconciliation source.
Run an initial collection in a non-production scope when available.
Confirm that a second collection updates existing CIs instead of creating duplicates.

Service Graph API contract

All Service Graph feeds use HTTP GET and the same servicenow_graph_connector key.

Order	Feed	Endpoint	Response collection	Use
1	Scope and networks	`/integrations/servicegraph/networks/`	`networks`	Discover key scope, monitoring mode, networks, and subnet context
2	Network-map inventory	`/integrations/network-map/by-customer/`	`results`	Collect discovered hosts/assets and network identity
3	Latest health	`/integrations/network-map/latest-health/by-customer/`	`results`	Add the latest availability, latency, jitter, packet-loss, Agent, and Proxy state
4	Full AIOps devices	`/integrations/aiops/devices/full/by-customer/`	`results`	Collect devices with nested specifications and interfaces

These four endpoints belong to the Graph connector. The alarms endpoint does not.

Supported query parameters

Parameter	Default	Maximum	Meaning
`limit`	50	200	Records returned in the current page
`offset`	0	—	Number of records already skipped
`network_id`	None	—	Optional restriction within the key’s allowed customer/network scope

Always follow the complete next URL returned by the API and send the same Authorization header. Do not advance reconciliation or retire stale CIs unless every page of every required feed succeeds.

Monitoring scope behavior

`monitoring_scope`	Connector behavior
`network`	Collect networks, network-map inventory, latest health, and full devices
`device`	Accept an empty networks collection, use top-level `subnet_cidr`, skip network-map/health when no network exists, and collect full devices at customer scope
`both`	Collect every feed; full devices may include network-associated and customer-only devices

CMDB identity and relationship guidance

Use stable, customer-qualified source identifiers. Never identify a CI using changing health, severity, or description values.

Ceburu record	Preferred correlation inputs	Typical ServiceNow treatment
Network	`network.id`, `customer_id`, CIDR	Network/subnet CI or discovery scope
Network-map asset	`netmap.id`, `netmap.uuid`, management IP, MAC, customer/network context	Server, computer, router, switch, appliance, or approved class
AIOps device	`device.id`, serial number, management IP, MAC, `customer_id`, `ceburu_network_id`	Device, server, or network-gear CI
Specification	Parent device ID plus source record ID	Parent attributes or related source-detail record
Interface	Parent device ID plus interface ID or parent-scoped interface name	Interface/network-adapter child CI
Latest health	`networkmap.id = netmap.id`	Operational attributes or a related health record; never CI identity

Create or update parent CIs before child specifications and interfaces. Create relationships only after both endpoint CIs exist. If network-map and AIOps feeds describe the same physical device, define one explicit correlation rule to prevent duplicates.

Credential lifecycle

Use Regenerate to replace a key. Regeneration immediately invalidates the old raw value while retaining connector type, scope, endpoint permissions, rate limit, and expiration. Update ServiceNow and test the new key before relying on the next scheduled run.

Use Revoke when a connector is retired or a key is exposed. Revocation immediately stops authentication but does not remove CIs already imported into ServiceNow.

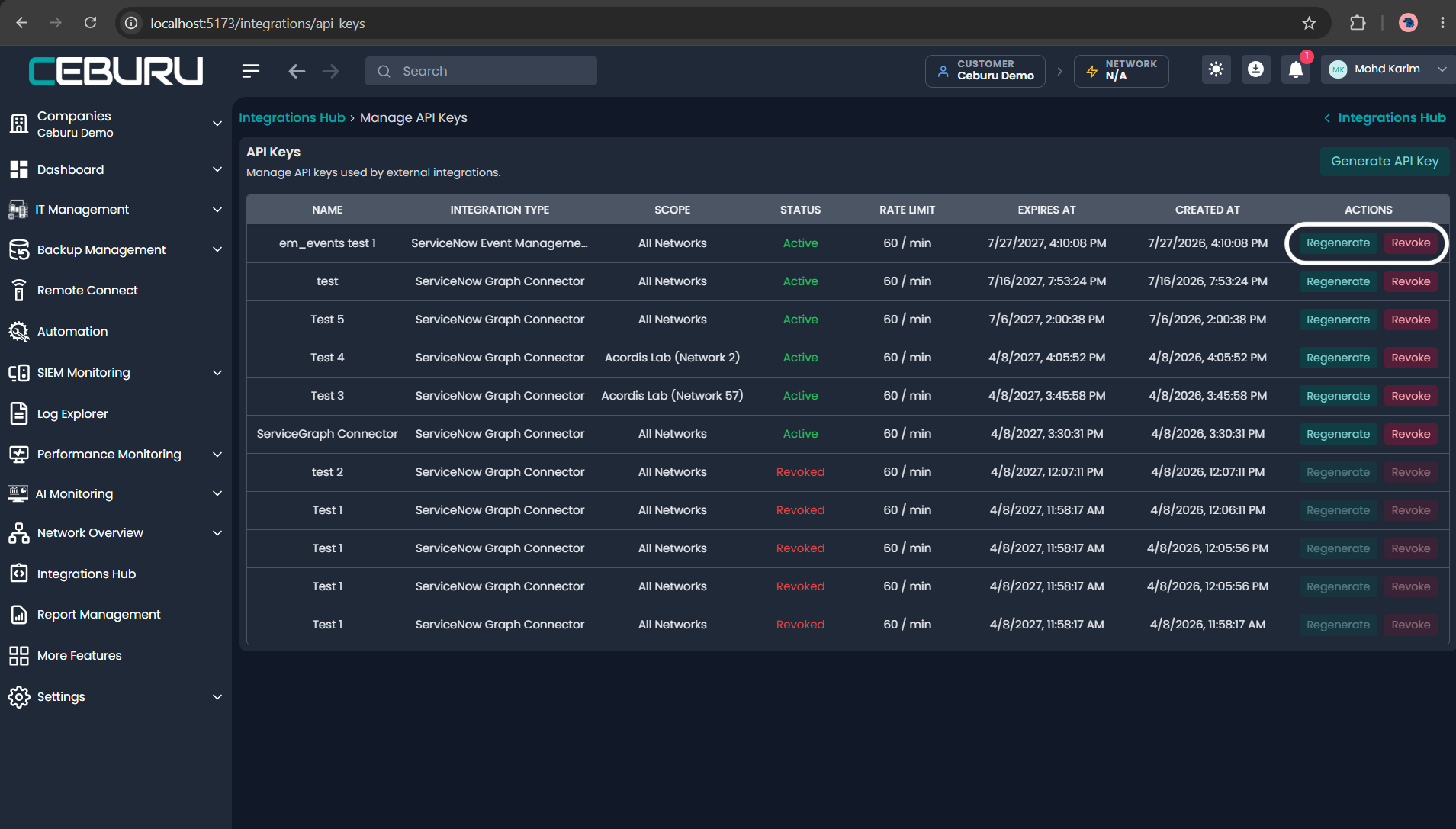

Regenerate and Revoke actions for API keys

Troubleshooting

HTTP status	Meaning	Action
`200`	Request succeeded	Process the page and follow `next`
`400`	Invalid query value	Correct the request parameters
`401`	Missing, invalid, revoked, regenerated, or expired key	Correct or replace the credential
`403`	Wrong connector type, endpoint, customer, or network scope	Use a Graph key and the allowed scope
`429`	Per-key rate limit exceeded	Stop immediate retries and retry with backoff
`500`–`599`	Ceburu/server collection failure	Retry safely; do not retire existing CIs or advance successful-run state

Production acceptance checklist

The key type is ServiceNow Graph Connector.
Customer-wide or network-restricted scope matches the design.
The raw key is stored only in an encrypted credential.
The four documented Graph endpoints return HTTP 200 as applicable.
The EM Events endpoint returns 403 when tested with this key.
Pagination follows each server-supplied next URL.
A repeated import updates CIs without duplicates.
Device/interface relationships are correct.
A failed collection does not retire valid CIs.
Rotation, expiration monitoring, and revocation ownership are documented.
