Log Dashboards

Created by niharika Velidhi, Modified on Thu, 2 Apr at 6:02 PM by niharika Velidhi

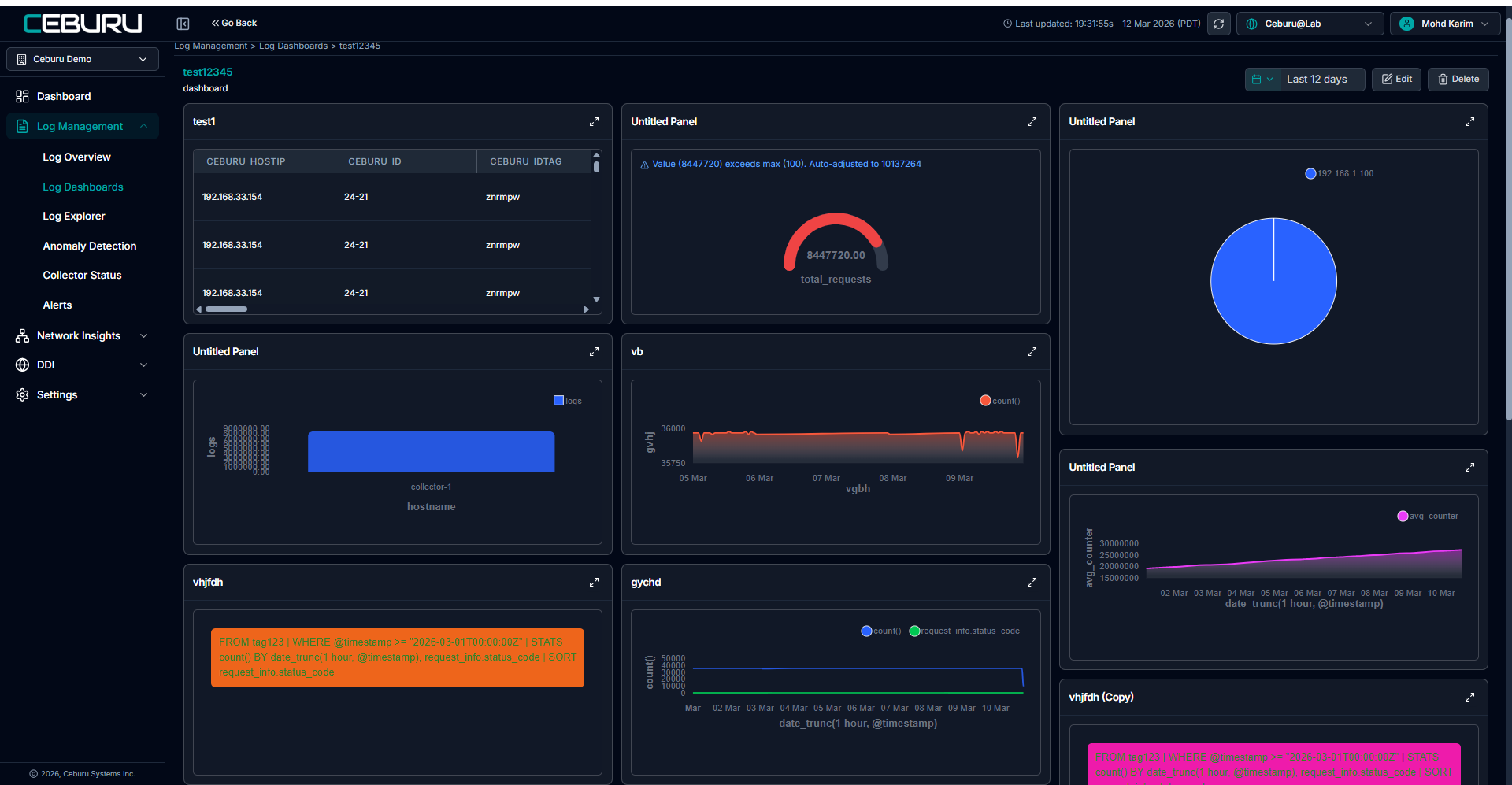

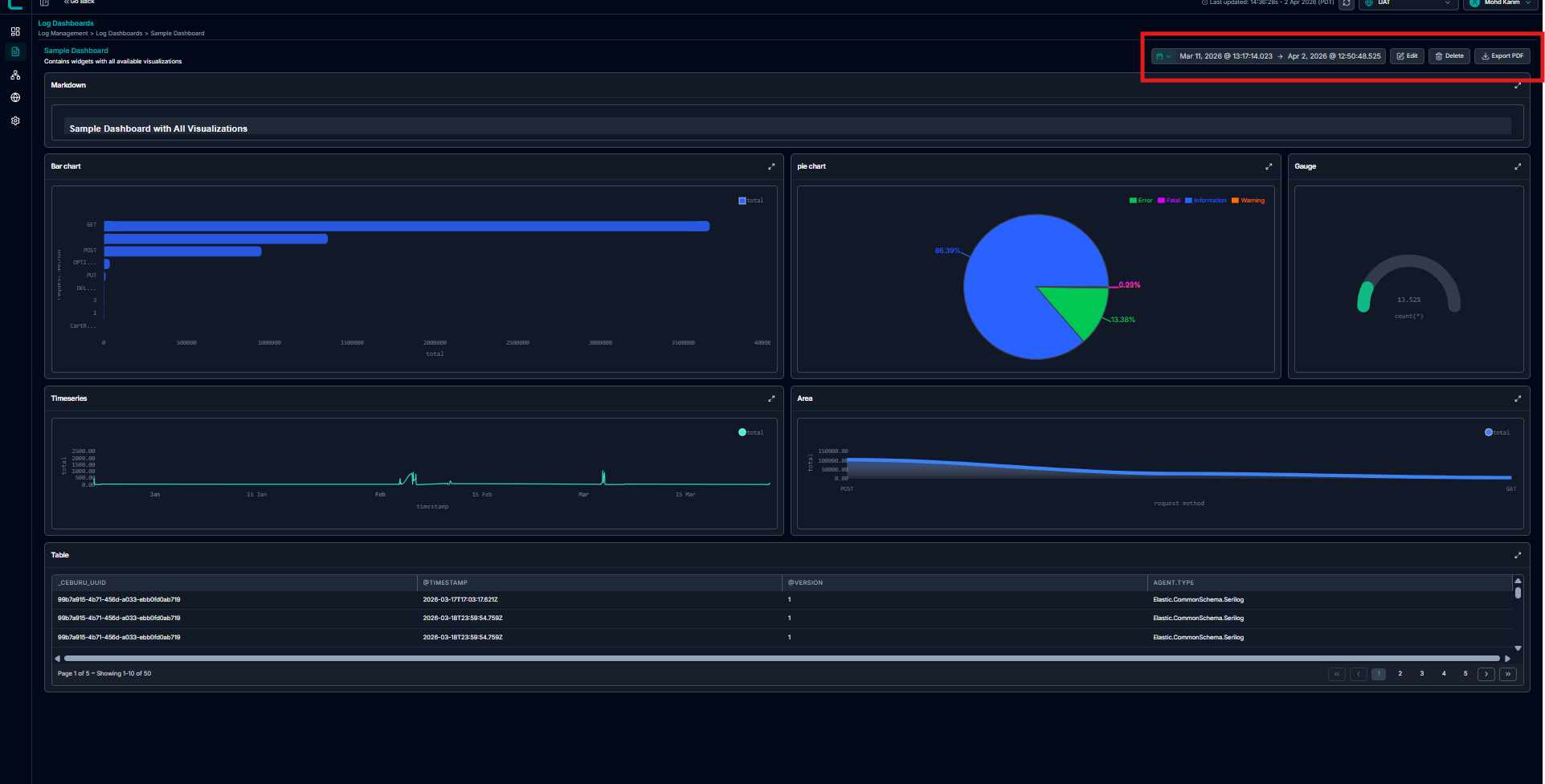

Custom Log Dashboards allow you to visualize log data using tables based on ESQL queries. You can create multiple panels with different queries and organize them into a single dashboard for easier monitoring and analysis.

Navigate to Log Management from the left panel.

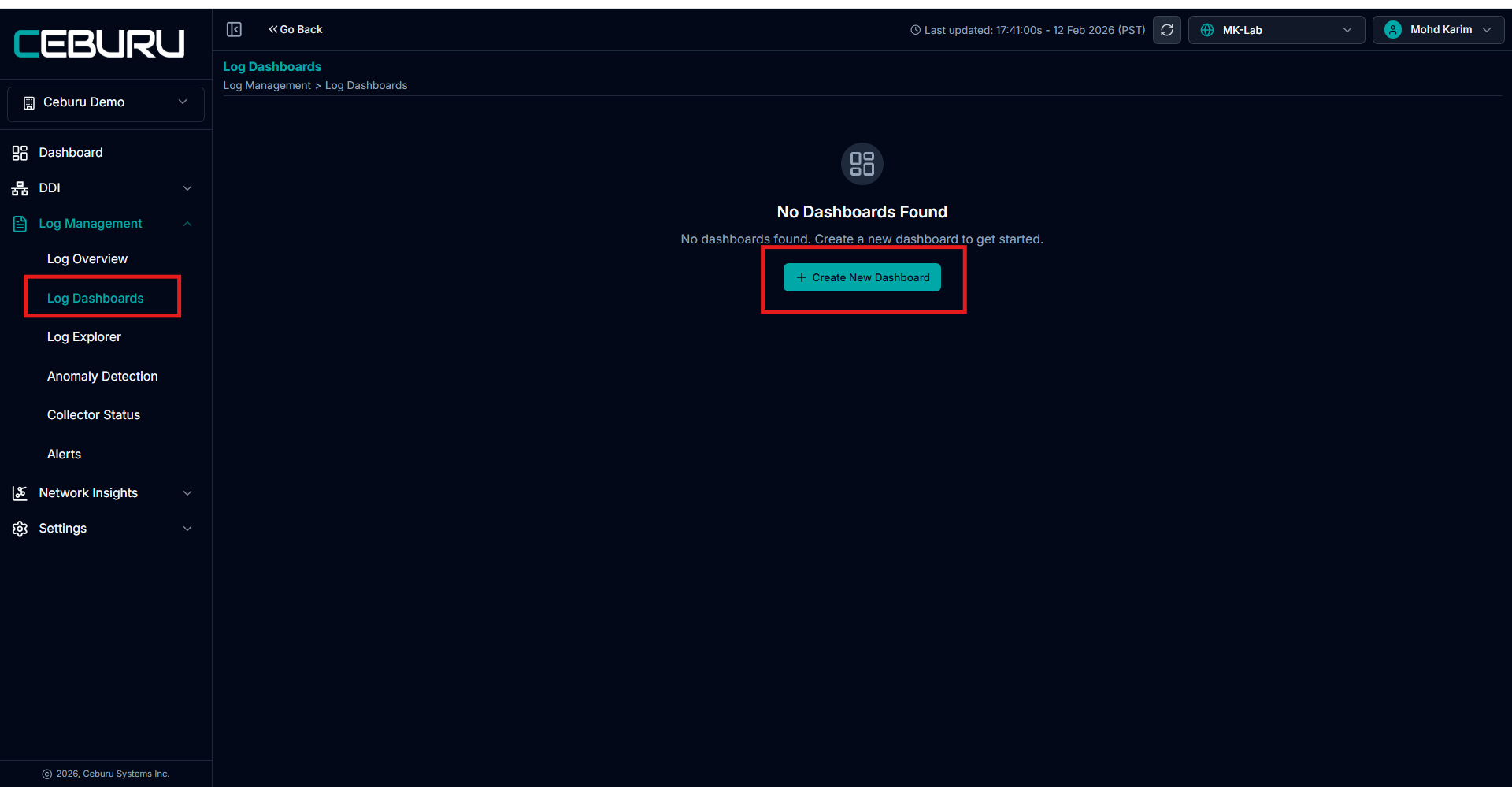

Click Log Dashboards.
If no dashboards exist, click Create New Dashboard.

Enter the Dashboard Name.
Optionally enter a Description.

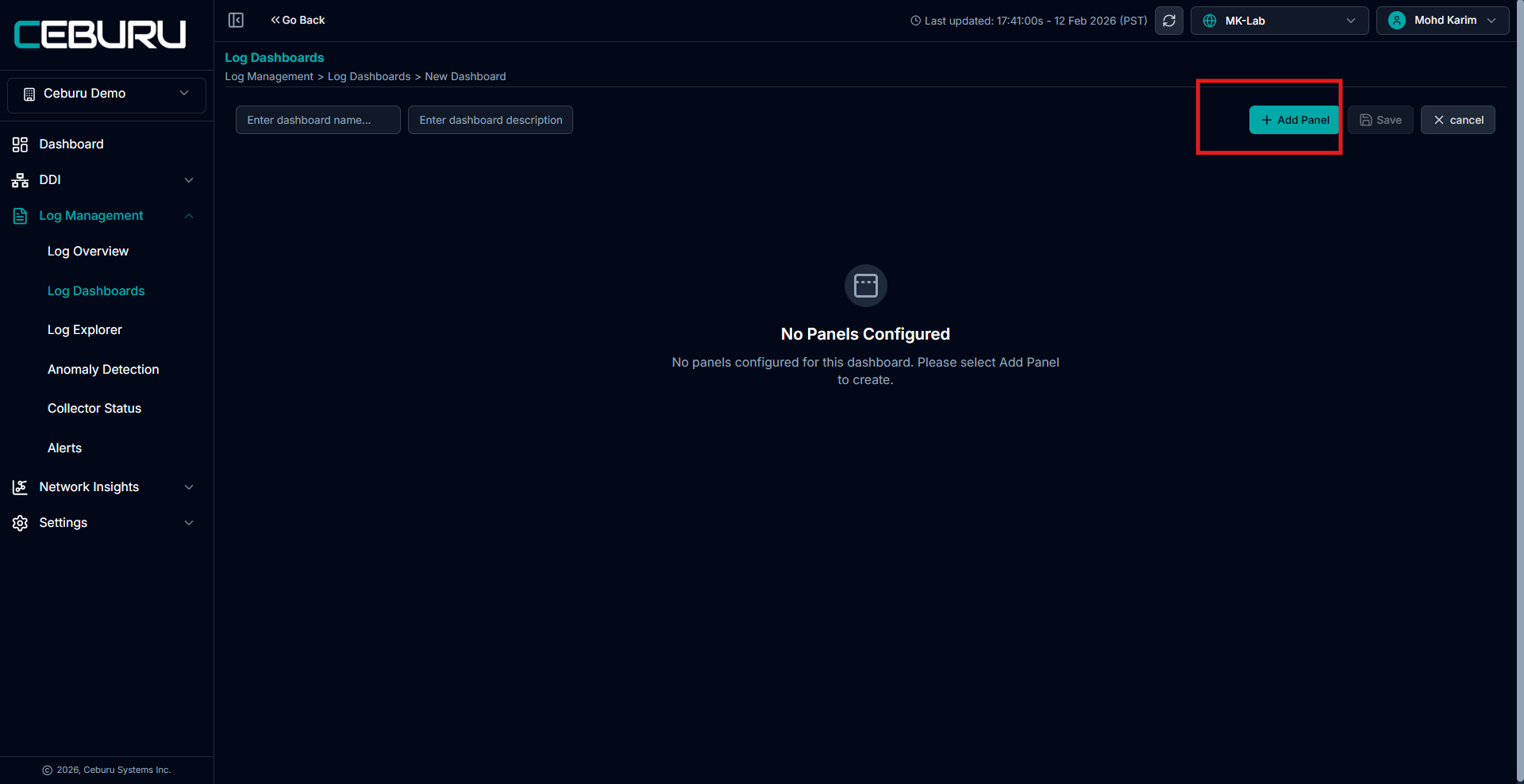

Click Add Panel.

This opens the panel configuration screen.

Configure Panel:

A. Panel Name: Enter a meaningful name for the panel.

B. Select Chart Type: Choose the required visualization type:

Table
Bar Chart
Pie Chart
Gauge Chart
Area Chart
Markdown
Timeseries Chart

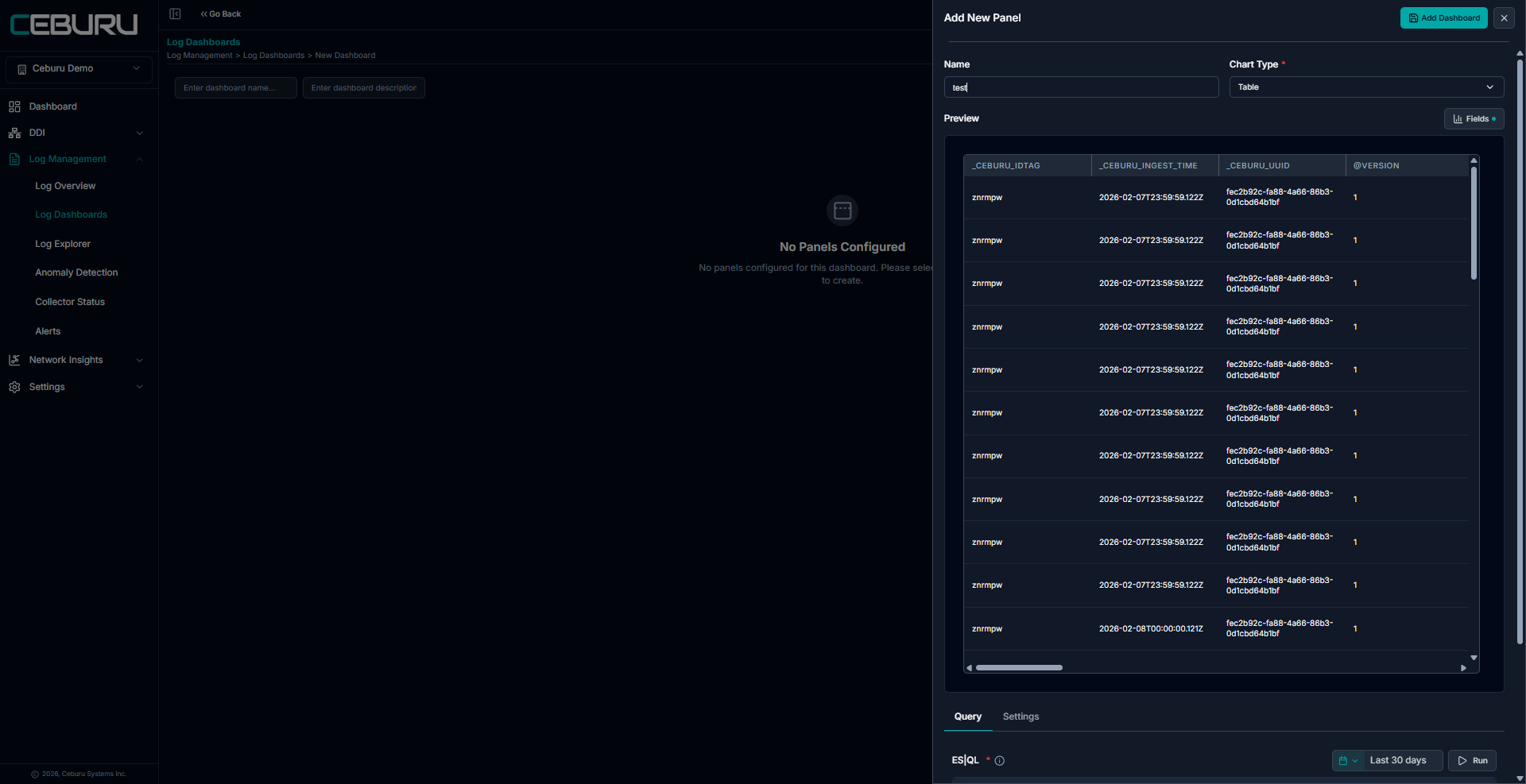

For log listing and structured fields, select Table:

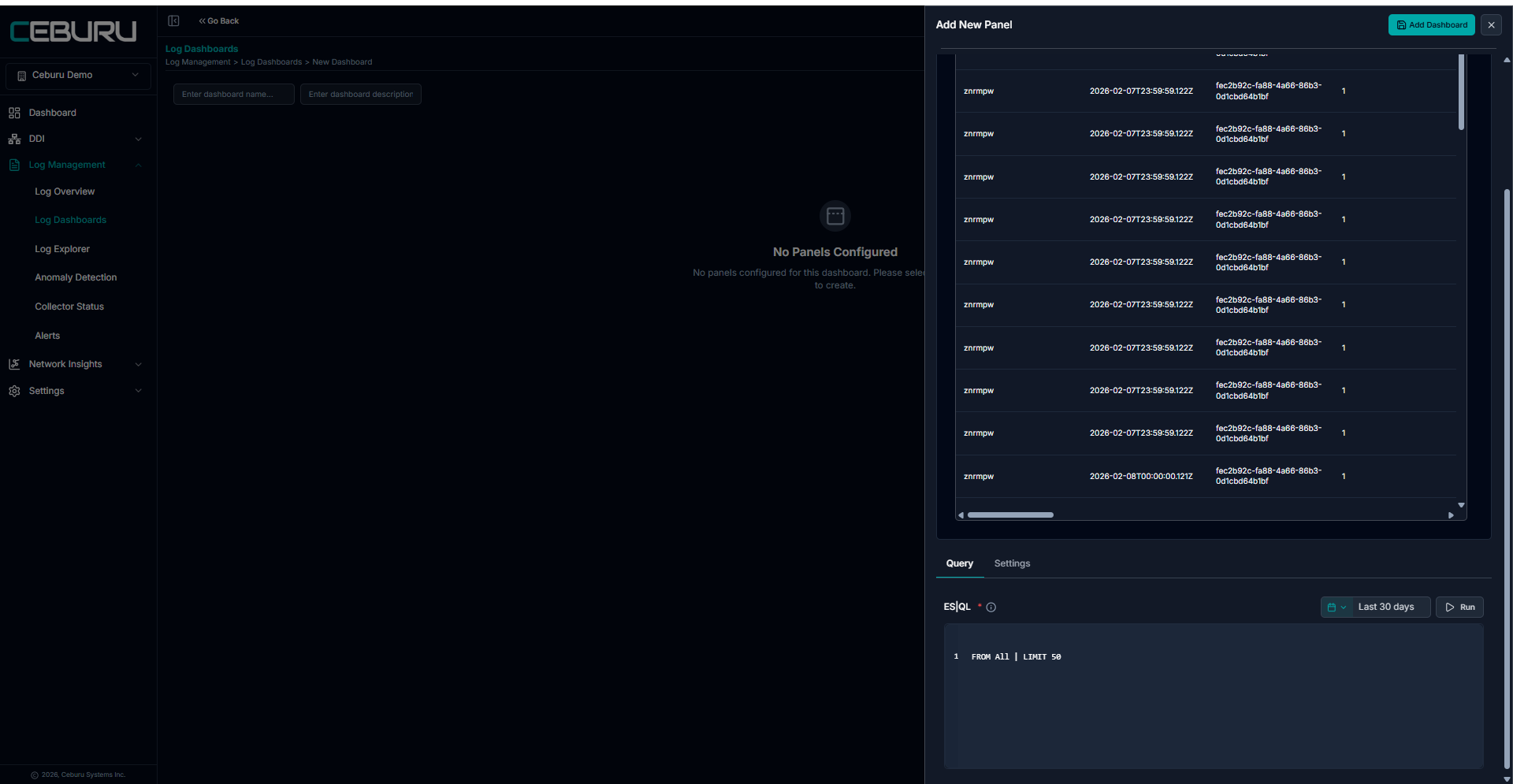

Enter ESQL Query

In the ESQL editor:

Example: FROM ALL | LIMIT 50

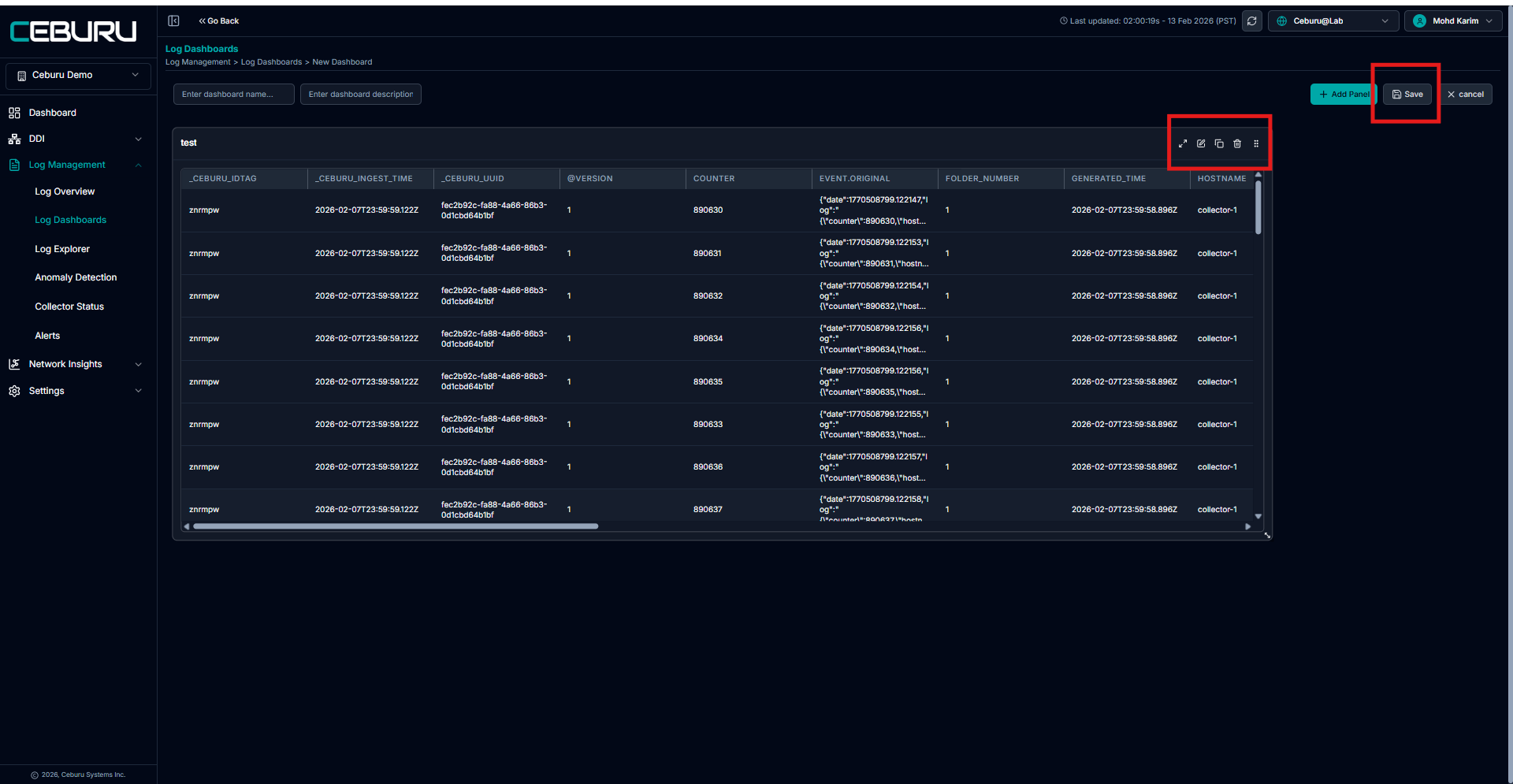

Click Run to validate and preview data.

Preview Data: The preview section displays returned records based on your query.

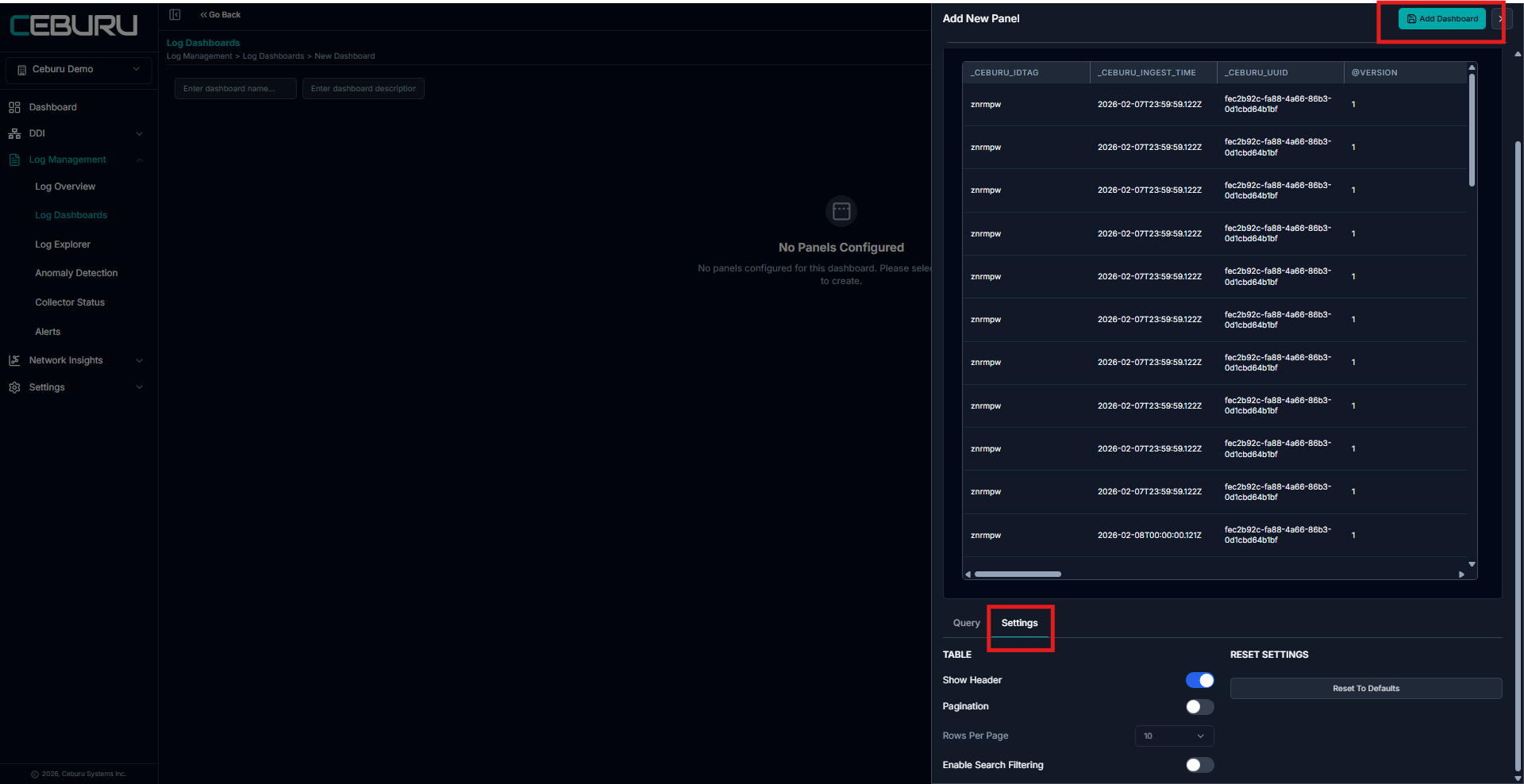

Setting Options:

Show Header – Toggles the visibility of the table header row.
Pagination – Enables or disables pagination for navigating through large datasets.
Rows Per Page – Specifies the number of rows displayed per page when pagination is enabled.
Enable Search Filtering – Allows users to search and filter table data dynamically.
Reset to Defaults – Restores all table settings to their default configuration.

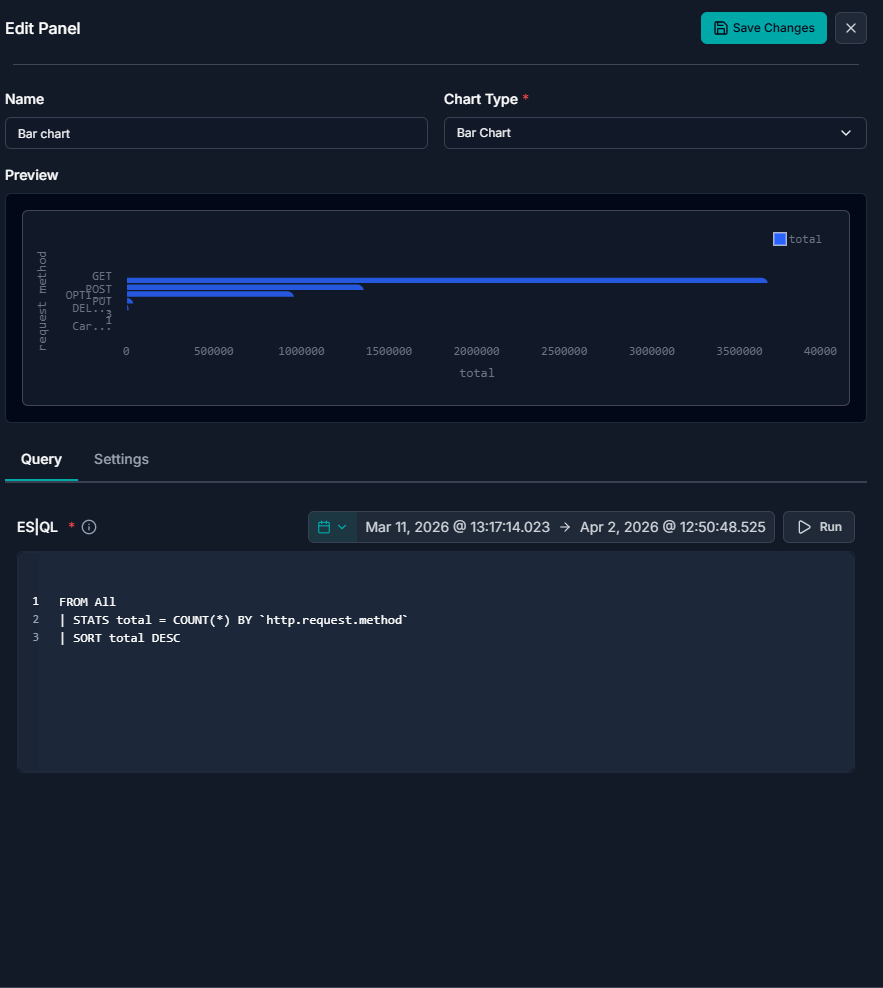

Bar Chart:

A Bar Chart is used to compare counts or values across categories.

Example Use Cases

HTTP status code distribution
Requests per service
Errors by host
Top IP addresses generating logs

Behavior

X-axis → Categories (status codes, services)
Y-axis → Aggregated count

Query Requirements

Query must include STATS
Must return exactly 2 columns:
- 1 categorical (X-axis)
- 1 numeric metric (Y-axis)
Numeric column must be numeric in all rows

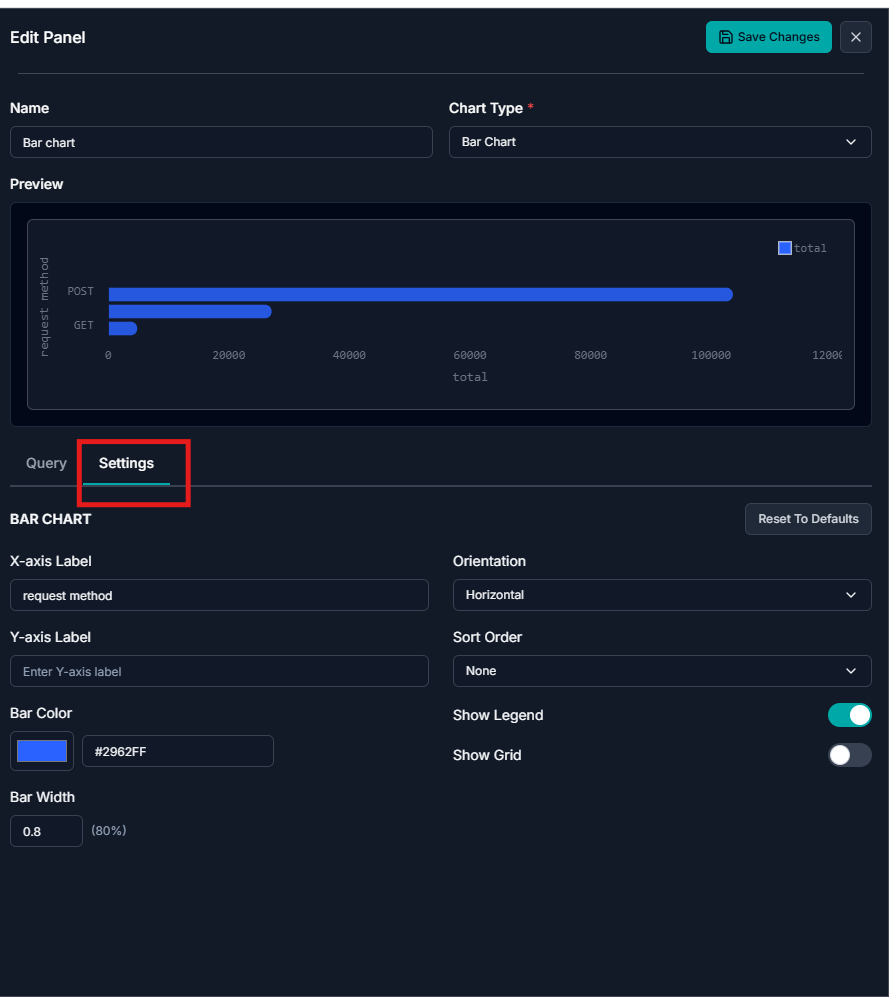

Settings Option:

X-axis Label: Set the label for the horizontal axis.
Y-axis Label: Set the label for the vertical axis.
Orientation: Choose whether bars are displayed horizontally or vertically.
Sort Order: Arranges bars in ascending, descending, or default order.
Bar Color: Set the color of the bars using a hex code.
Bar Width: Controls the thickness of the bars (range 0–1).
Show Legend: Toggles the display of the chart legend.
Show Grid: Toggles the visibility of background grid lines.
Reset to Defaults: Restores all settings to their default values.

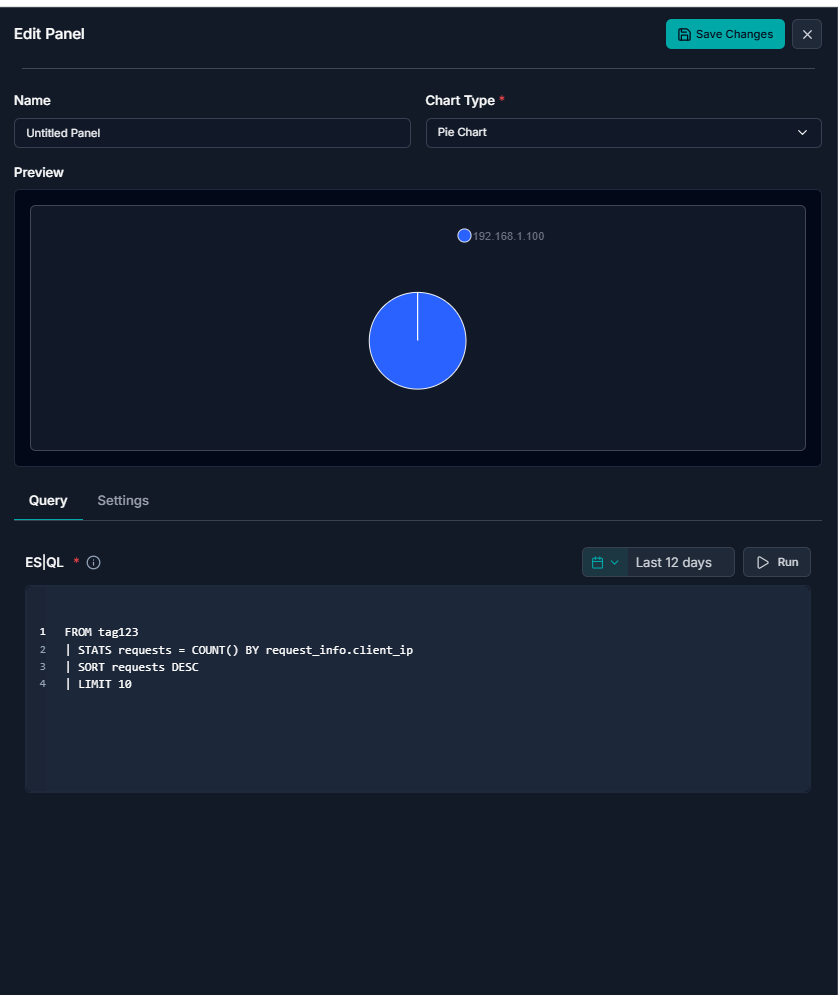

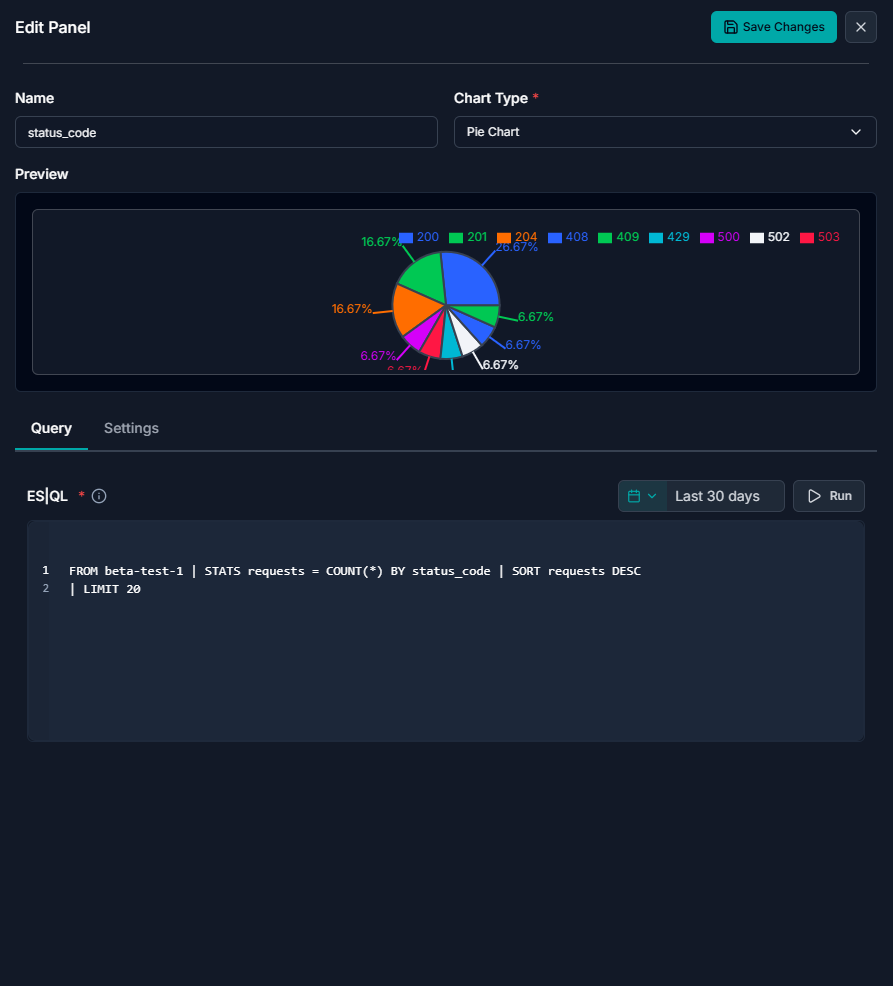

Pie Chart:

A Pie Chart displays proportional distribution within a dataset.

Example Use Cases

Error vs success ratio
Service traffic share
Log source distribution
Protocol usage

Behavior

Each slice represents a category
Size reflects percentage contribution

Query Requirements

Query must include STATS
Must return exactly 2 columns:
- 1 categorical
- 1 numeric
Maximum categories: 15 rows
Not allowed for time/date fields
Numeric values cannot be negative

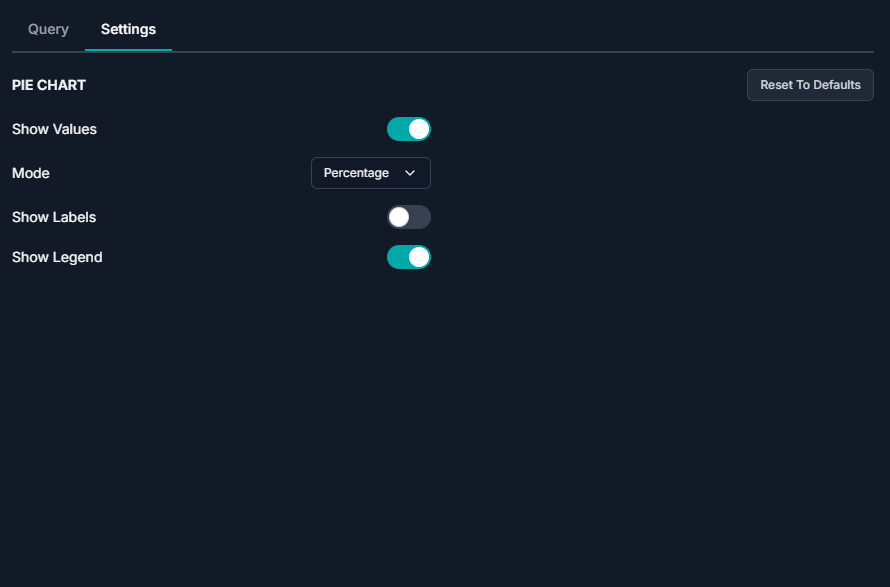

Setting options:

Show Values: Toggle display of values on the pie chart.
Mode: Select whether values are shown as percentage or actual numbers.
Show Labels: Toggle display of slice labels on the chart.
Show Legend: Toggle the display of the chart legend.
Reset to Defaults: Restore all settings to their default values.

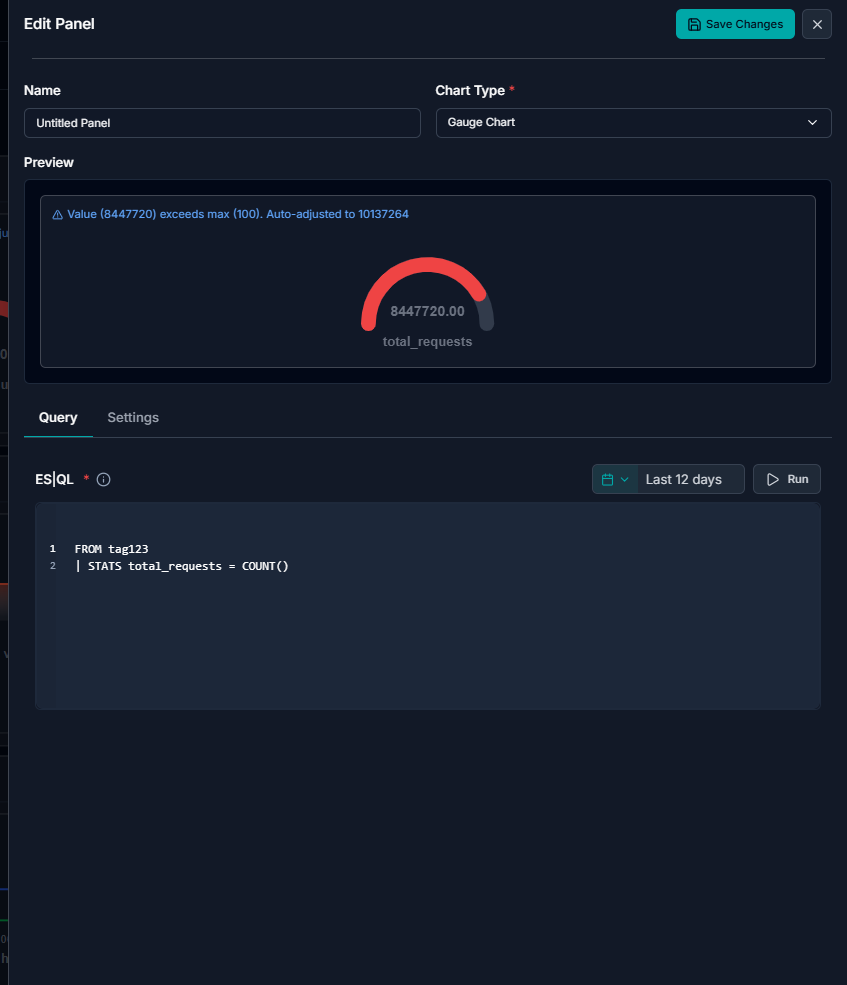

Gauge Chart:

A Gauge Chart displays a single numeric metric relative to a range.

Example Use Cases

Error rate percentage
Average response time
CPU utilization
Failed login rate

Behavior

Shows a single value against thresholds

Query Requirements

Must return:
- exactly 1 column
- exactly 1 row
Value must be:
- numeric
- non-null
Typically uses aggregation: STATS AVG(...), COUNT(...)

Setting Options:

Show Values: Display numeric values on pie slices.
Mode: Choose between percentage or actual value display.
Show Labels: Display category names on slices.
Show Legend: Show or hides the chart legend.
Reset to Defaults: Reset all settings to default values.

Area Chart:

An Area Chart visualizes trends over time or categories.

Example Use Cases

Requests over time
Errors over time
Log volume trends
Traffic growth

Behavior

X-axis → time/category
Y-axis → aggregated values
Supports multi-series

Query Requirements

Query must include STATS
Must return:
- at least 2 columns
- at least 2 rows
Requires:
- 1 X-axis field (time/category/numeric)
- 1 or more numeric Y fields
Supports multiple numeric series
All numeric columns must be numeric across rows

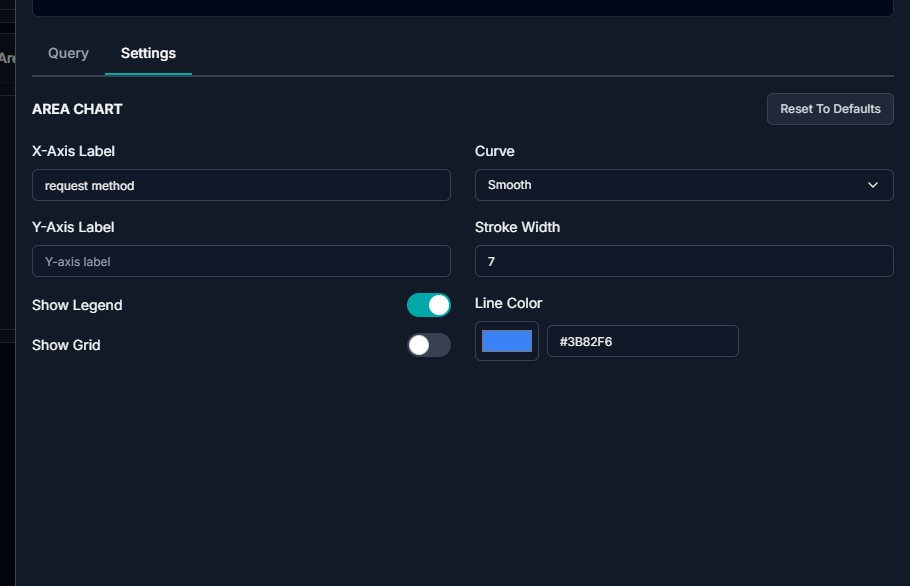

Setting Options:

X-Axis Label – Define the title displayed along the horizontal axis (e.g., request method).
Y-Axis Label – Define the title displayed along the vertical axis.
Curve – Control the style of the line in the chart (e.g., smooth or straight).
Stroke Width – Set the thickness of the chart line.
Line Color – Specifies the color of the chart line using a color picker or hex code.
Show Legend – Toggle the display of the chart legend for identifying data series.
Show Grid – Toggle the visibility of grid lines in the chart background.
Reset to Defaults – Restore all chart settings to their original default values.

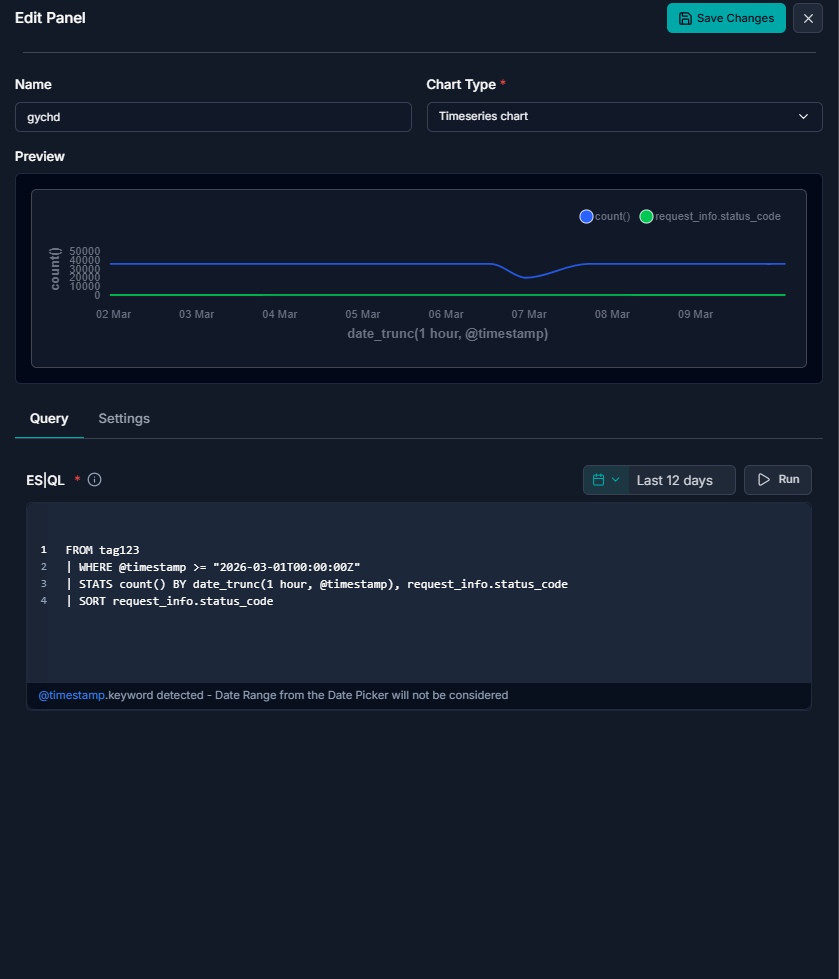

Timeseries Chart:

Displays events in chronological order.

Example Use Cases

Incident timelines
Service outages
Security events
Request tracking

Behavior

Plots events along a time axis

Query Requirements

Query must include STATS
Must include:
- one time/date field (X-axis)
- one numeric metric (Y-axis)
Supports grouped multi-series if categorical field exists
Numeric series must be valid across all rows

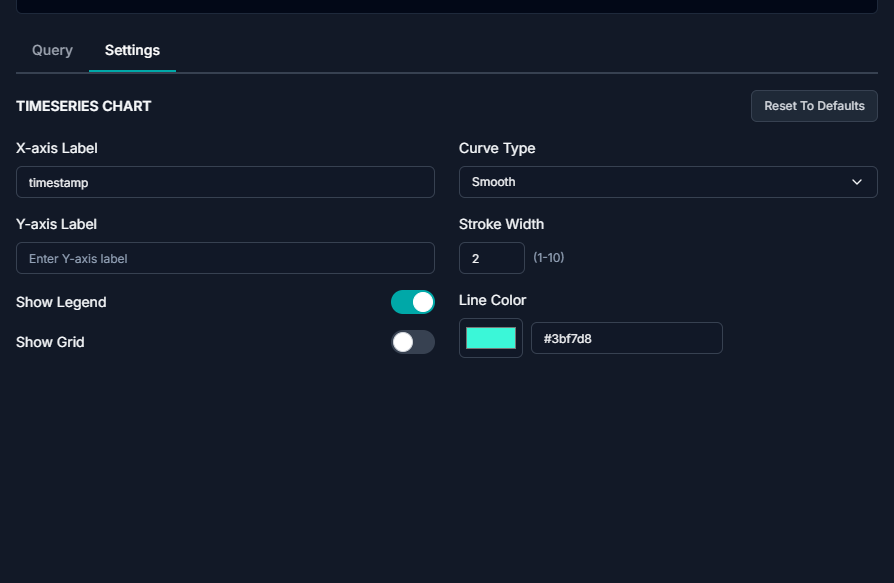

Setting Options:

X-Axis Label – Defines the label for the horizontal axis, typically representing time (e.g., timestamp).
Y-Axis Label – Defines the label for the vertical axis representing the measured values.
Curve Type – Determines the style of the line (e.g., smooth or straight).
Stroke Width – Controls the thickness of the line (range: 1–10).
Line Color – Set the color of the line using a color picker or hex value.
Show Legend – Toggles the visibility of the legend for identifying data series.
Show Grid – Toggles the display of background grid lines.
Reset to Defaults – Restore all chart settings to their default configuration
