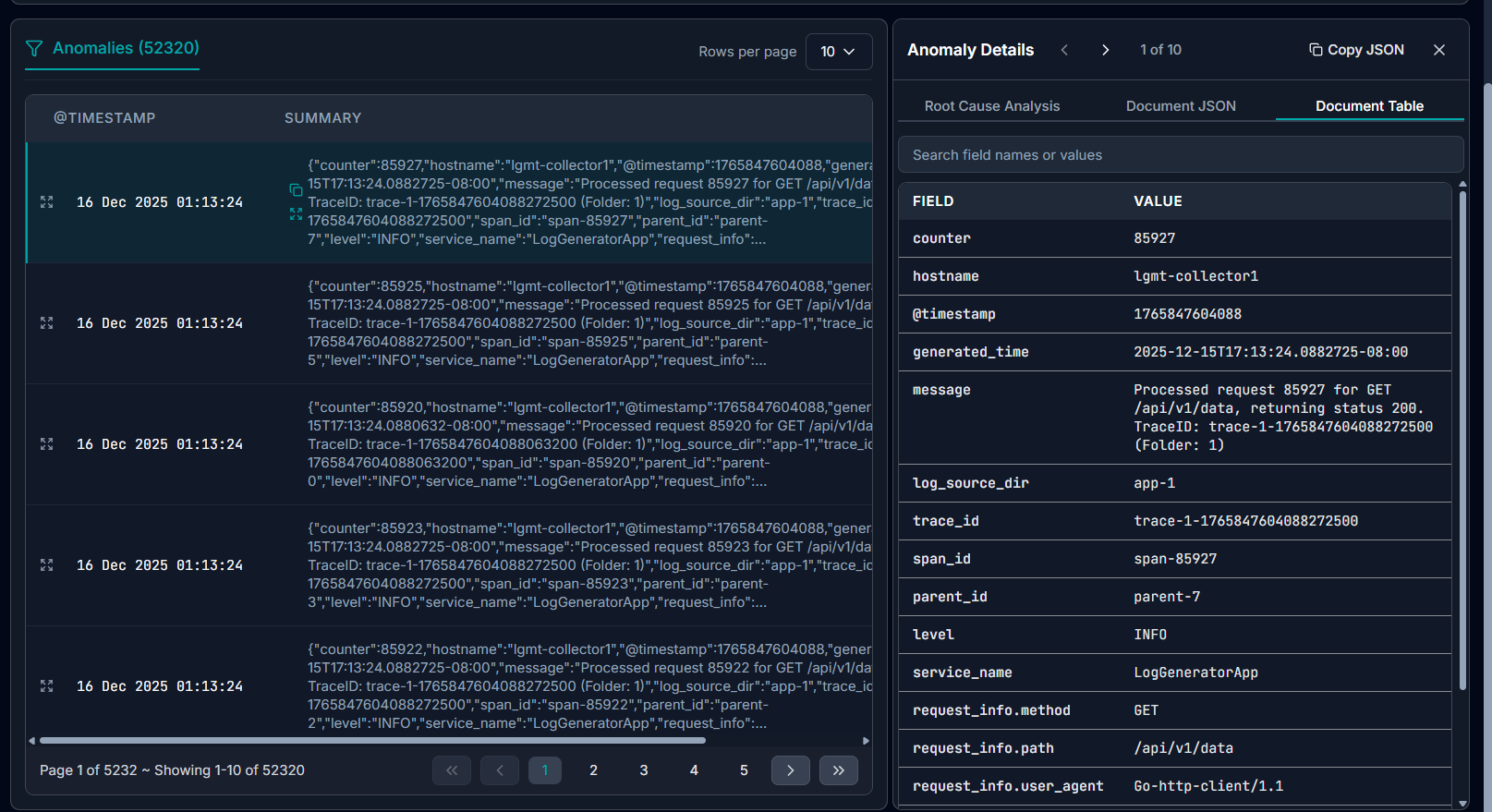

The Document Table tab converts the JSON into a readable field-value table.

Benefits:

• Easier inspection of log attributes

• Clear visibility into key fields

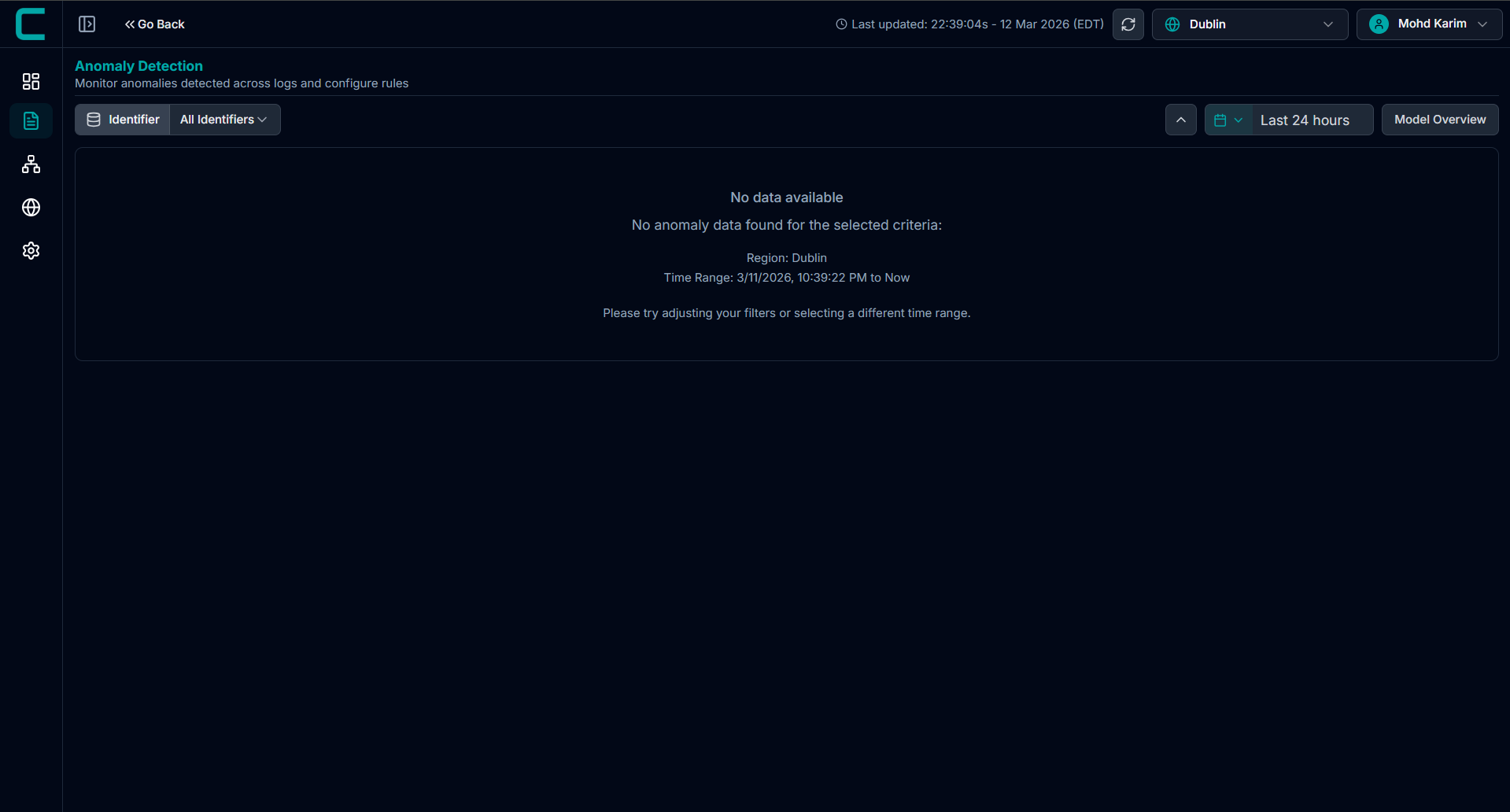

Model Overview

The Model Overview section provides configuration and monitoring controls for the AI model used in Log Management to detect anomalies in log data. It allows administrators to define which log fields are analyzed, create rules to ignore known benign patterns, and review model training activity. The anomaly detection model analyzes log events and identifies unusual patterns based on historical data patterns from each individual customer environment.

The Model Overview panel contains three sections:

• Field Mappings
• Exclusion Rules
• Training

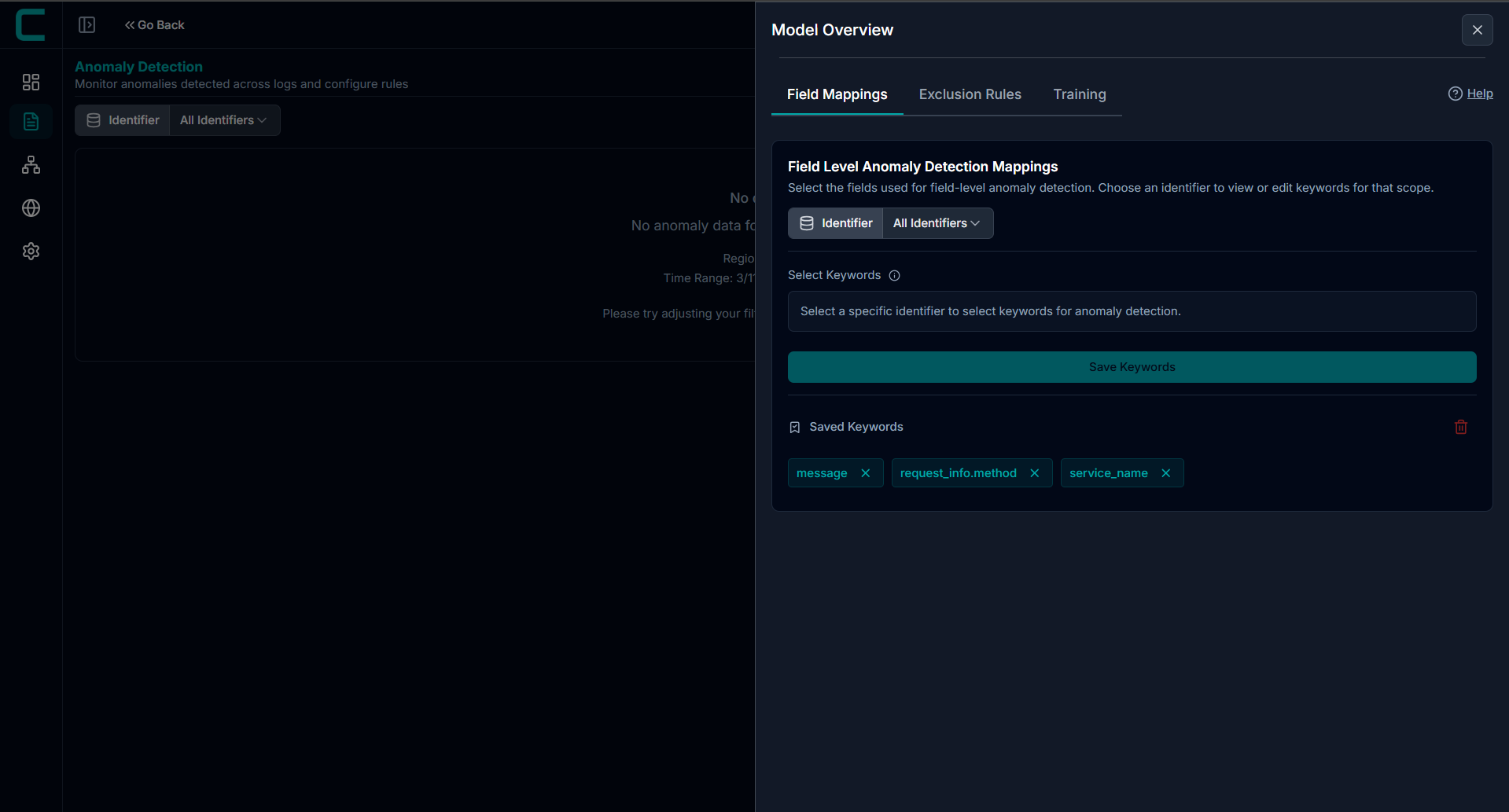

Field Mappings

Field Mappings define which log attributes are used by the AI engine for field-level anomaly detection. These mappings determine which fields from incoming logs are evaluated when the system analyzes patterns and detects abnormal behavior.

Administrators can configure mappings for a specific Identifier. Identifiers represent logical groupings of log events, allowing the anomaly model to evaluate patterns within a defined scope.

How Field Mapping Works

The system examines the selected keywords (fields) in log records and builds behavioral baselines based on those values. Any deviation from the learned baseline may be flagged as a potential anomaly.

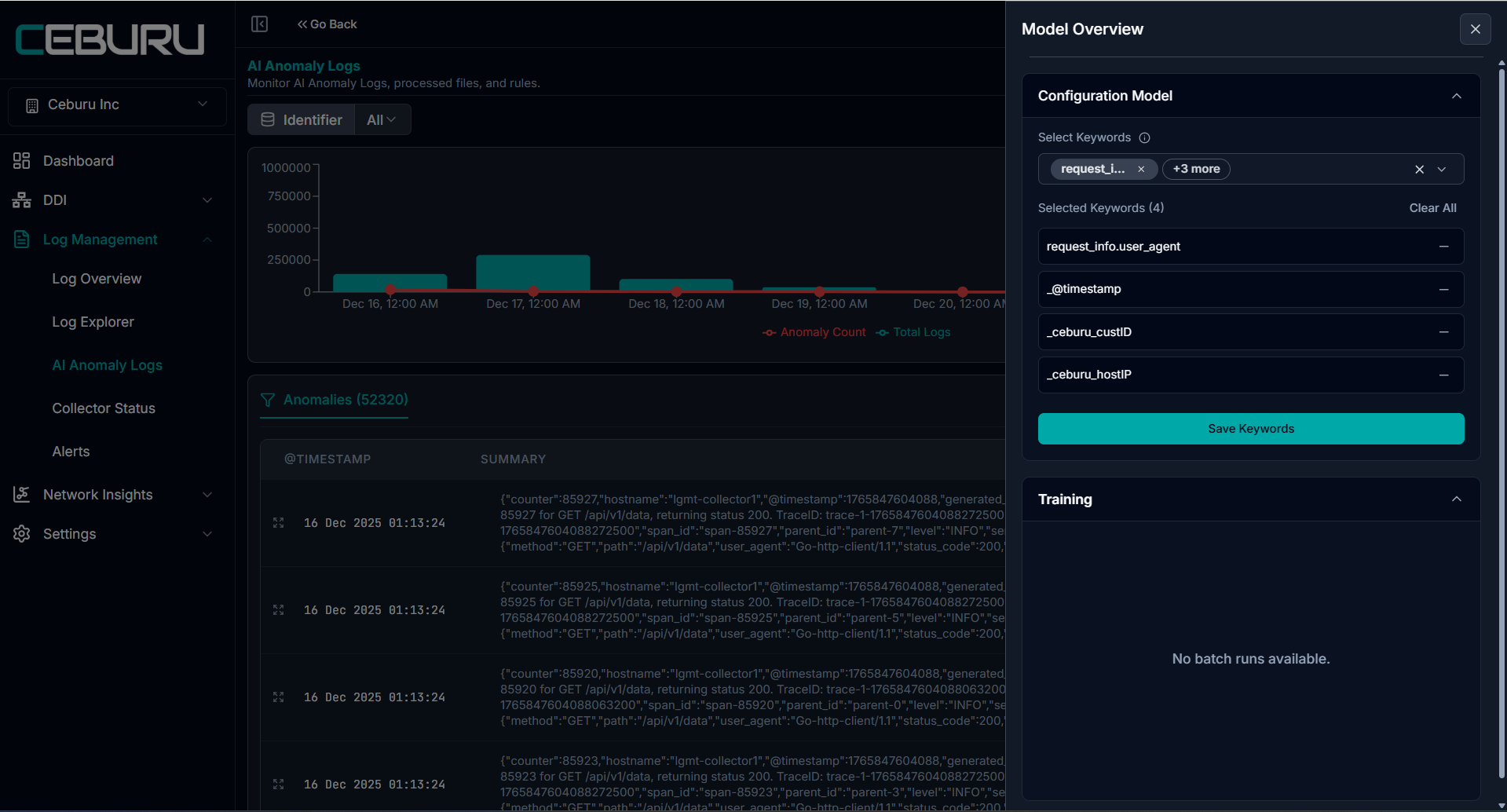

Configuring Field Mappings

1. Select an Identifier from the dropdown menu.

2. Use the Select Keywords multi-select field to choose log attributes used for anomaly detection.

3. Selected fields appear as pills inside the selection area.

4. Hover over a truncated keyword to view the full field name.

5. Remove a selected keyword using the X icon on the pill.

6. Click Save Keywords to store the configuration for the selected identifier.

Managing Saved Keywords

The Saved Keywords section displays all active field mappings for the selected identifier.

Administrators can:

• Remove a single keyword using the X icon
• Remove all keywords using the trash icon
• Confirm deletion when prompted

Removing keywords changes how the anomaly model evaluates log patterns.

Typical fields used for anomaly detection include:

• message
• request_info.method
• service_name
• http.response.status_code
• duration
• source_ip
• user_agent

Selecting meaningful fields improves detection accuracy.

Exclusion Rules:

Exclusion Rules allow administrators to define conditions that prevent certain log events from being flagged as anomalies. This helps reduce noise and ensures that expected or benign patterns do not trigger alerts.

Exclusion rules are particularly useful for:

• Expected HTTP status responses
• Known service behavior
• Health check requests
• Automated system activity

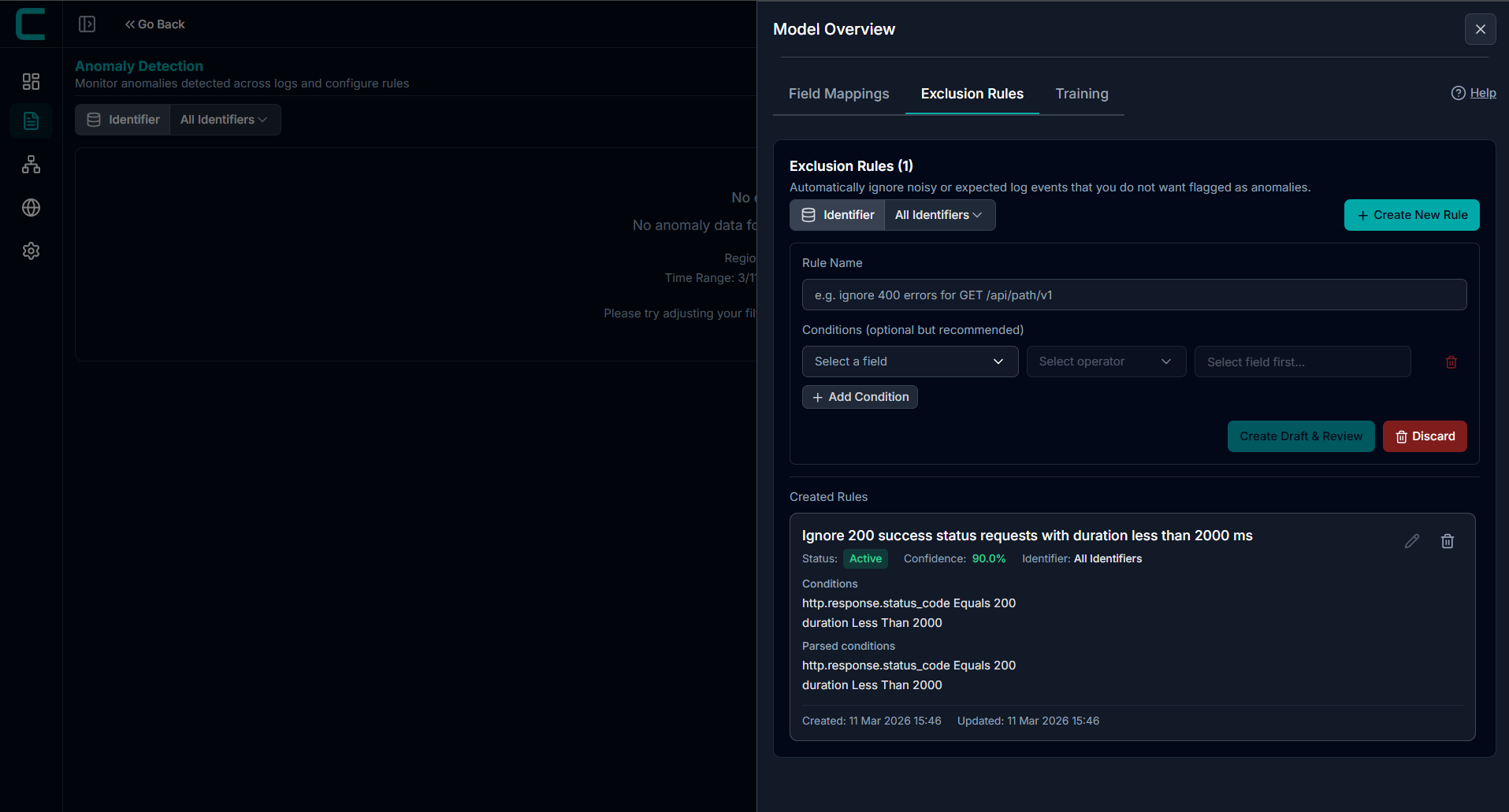

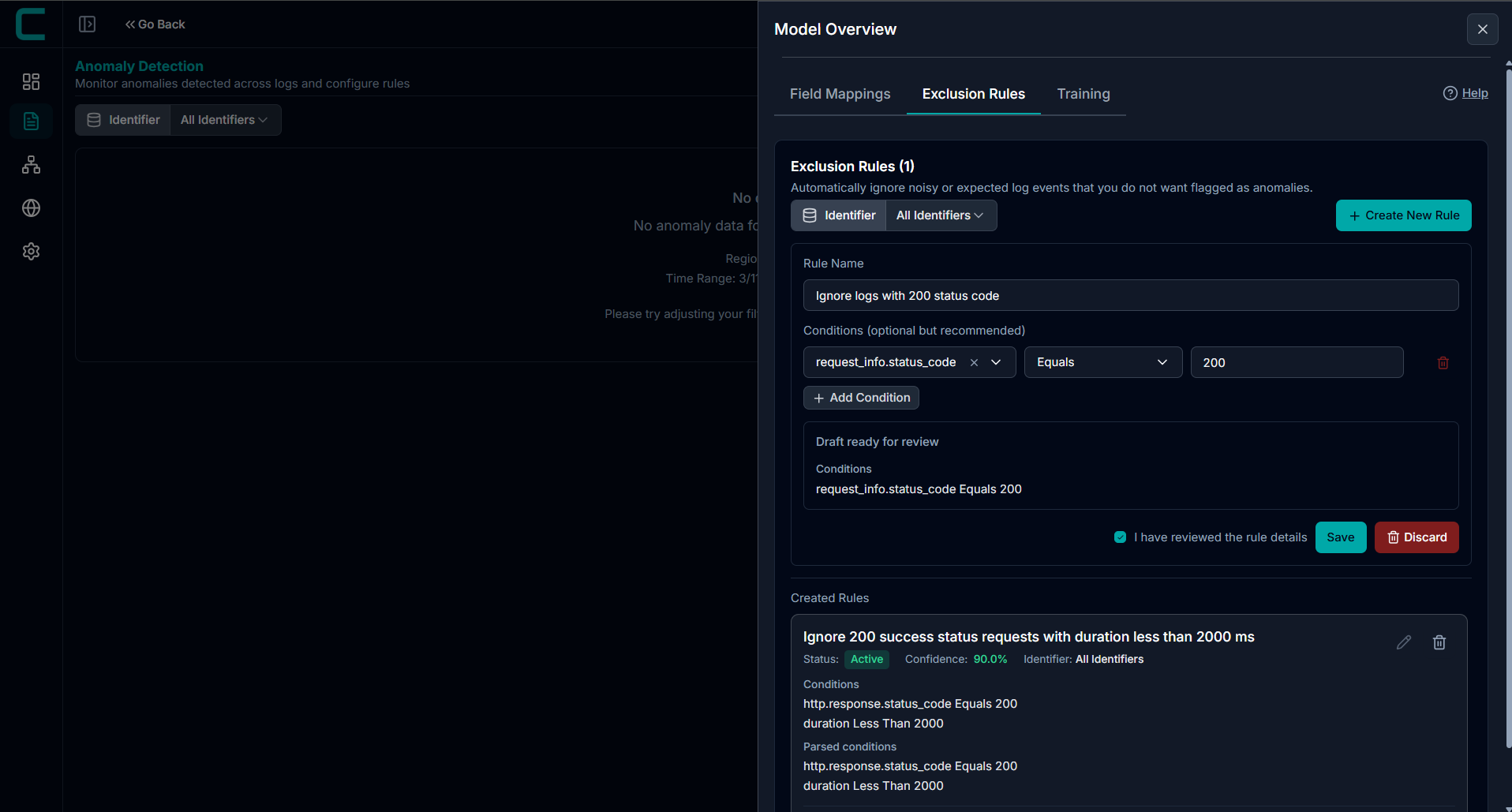

Creating an Exclusion Rule:

1. Select an Identifier scope (or choose All Identifiers).

2. Enter a Rule Name describing the pattern to ignore.

3. Optionally define Conditions using:

   • Field

   • Operator

   • Value

4. Click Create Draft & Review.

If conditions are not specified, the AI system attempts to generate suggested conditions based on the rule name.

Draft Review Process

After creating a draft:

• The system generates parsed conditions
• A confidence score is displayed
• Review the suggested logic before saving

To finalize the rule:

1. Check I have reviewed the rule details.

2. Click Save.

Alternatively:

• Click Discard to remove the draft.

Rule Status:

Pending Review

• The rule has been created but not yet approved.
• Click Edit to review the parsed conditions.
• Confirm and click Save to activate.

After activating the rule is currently applied during anomaly detection.

Editing Rules:

Some rules generated automatically from rule names may have auto-parsed conditions. These rules cannot be modified and can only be deleted.

For editable rules:

1. Click Edit.

2. Modify the rule name or conditions.

3. Click Update Rule.

Hovering over the confidence score displays additional details about the rule generation accuracy.

Training:

The Training section displays the status of anomaly model training runs.

The anomaly detection model is trained using historical log data from each individual customer environment. This ensures that anomaly detection reflects the normal operational patterns of that specific customer, rather than using a global baseline.

Because each customer environment has unique log behavior, the model continuously learns patterns such as:

• Normal request frequency
• Typical response times
• Expected status codes
• Service communication patterns

This customer-specific training improves detection accuracy and reduces false positives.

Training Queue Status

The header indicates the training queue state:

In Progress: Training jobs are currently running.

Completed: All queued training jobs have finished.

Viewing Training Runs:

Each training batch can be expanded to display metrics including:

• Total Rows - Number of log records used in the training batch
• Anomaly Count - Number of anomalies detected during training
• Anomaly Ratio -Percentage of anomalous events in the dataset
• Elapsed Time - Duration of the training run

These metrics provide insight into model performance and dataset characteristics.

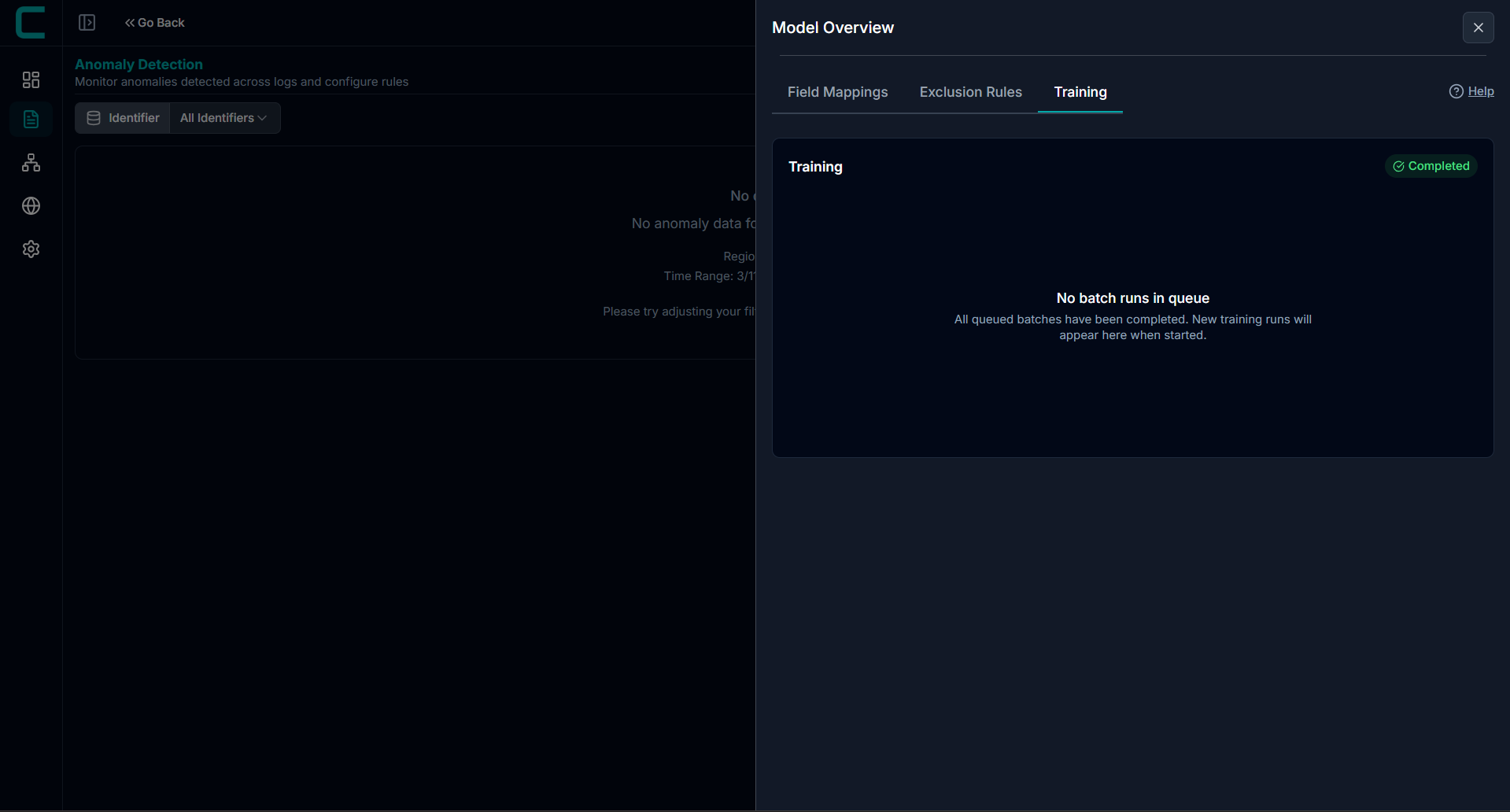

Empty Queue Behavior:

When no training runs exist, the interface displays a message indicating that the queue is empty. New batch runs will appear in this section once a training job is initiated.
