How to Configure Catayst / Meraki AIOPs Implementation?

Created by Lakshmi Vasanth, Modified on Thu, 5 Dec, 2024 at 9:12 AM by Lakshmi Vasanth

You can configure catalyst/ Meraki AIOPs to improve network performance by enabling proactive issue resolution through AI-driven insights and automation.

1. Navigate to Settings > Configurations > AIOPs.

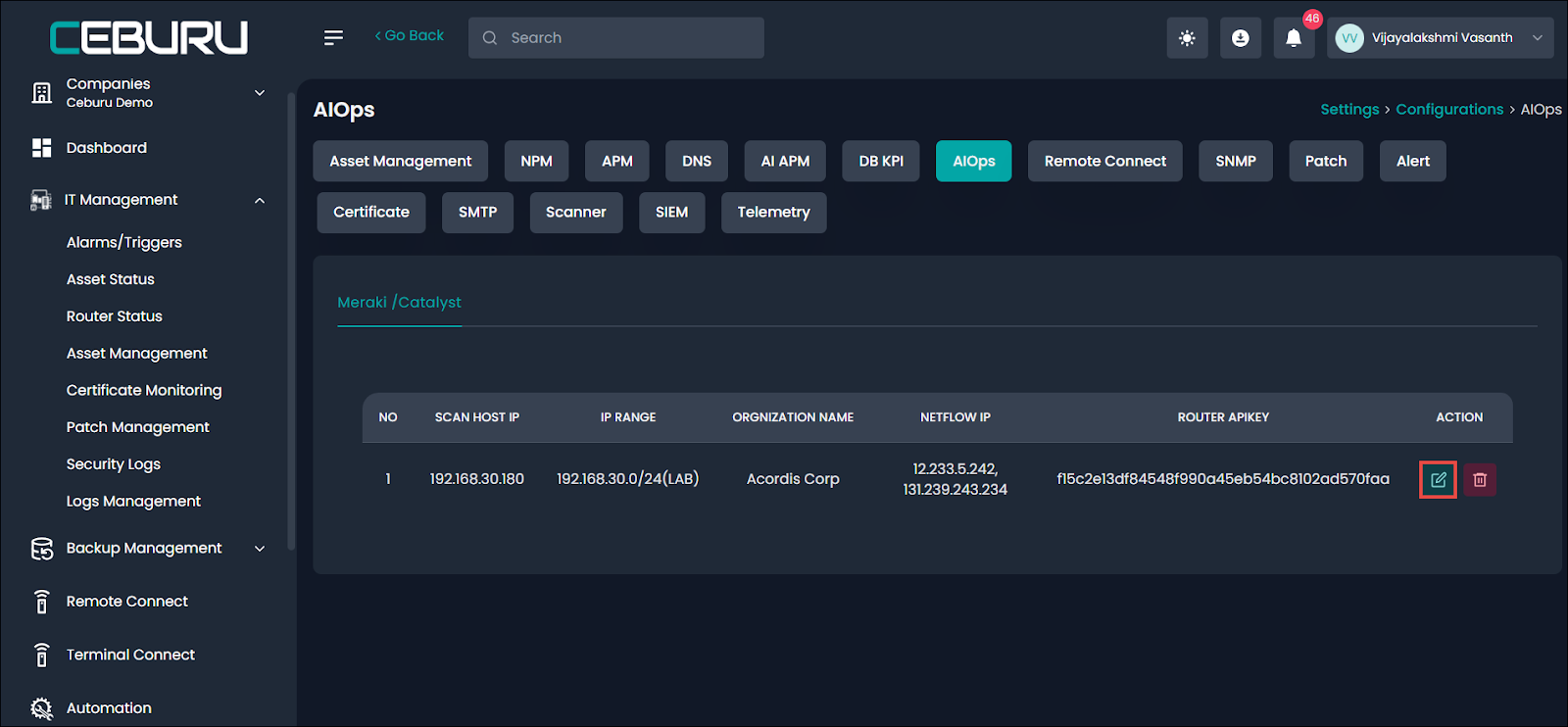

The AIOPs page is displayed.

2. To update a Catalyst / Meraki configuration, click the icon in the desired catalyst/Meraki administration.

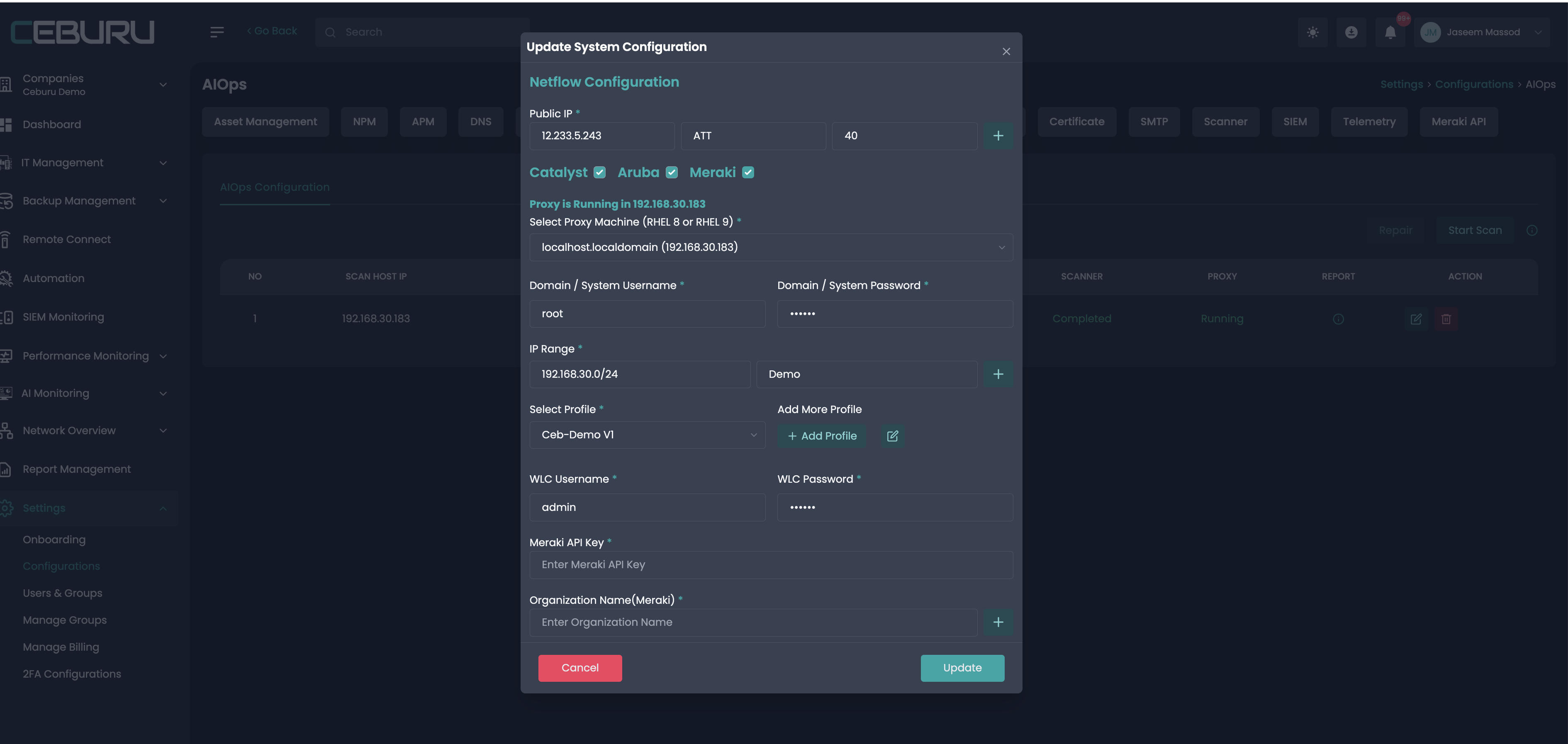

The Update System Configuration dialog is displayed.

3. Make the necessary changes to the fields as required. Please refer to the following table for field names and their descriptions.

Note: All fields with an asterisk (*) are mandatory.

Field Name	Description
Catalyst Configuration
Scan Host IP	Specific IP address that is required for scanning in the network
IP Range	Range of IP addresses to define the network segment for scanning
Select Profile	Profile applicable for the configuration
Add More Profile	Additional profile for configuration
Meraki Configuration
Router API Key	Unique API key for authenticating the router
Organization Name	Name of the organization associated with the configuration
Netflow IP	IP address used for collecting and sending NetFlow data

4. Click Update after making all the necessary changes.

The configuration is updated.

Note: To delete a Catalyst/ Meraki configuration, click the icon in the desired row of the profile and confirm your action.

A success notification for your action is displayed.
